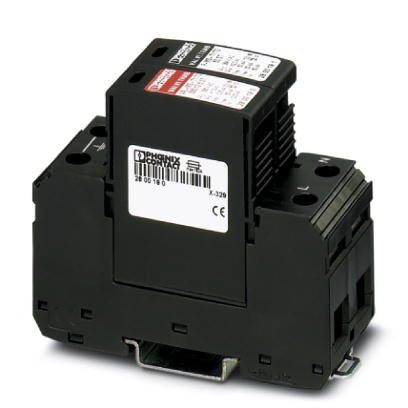

Phoenix Contact 2800187 Lightning Surge Arrester
This is a universal varistor-based plug-in lightning and surge arrester designed for single-phase power supply networks with separate neutral and protective earth conductors. Suitable for three-conductor systems (L1 - N - PE), it provides effective protection against voltage surges and electrical transients. The arrester features a maximum continuous operating voltage of 335 V AC for line-to-neutral and line-to-earth, dual UL and IEC standards compliance, and robust environmental ratings for outdoor application. It includes accessories like wiring bridges, marking strips, and replacement plugs, ensuring comprehensive surge protection for industrial and commercial power systems.
Phoenix Contact 2800187 Lightning Surge Arrester Specifications:
- Dimensions: Length 89.8 mm, Width 35.6 mm
- Ambient temperature (operation) and storage: -40 °C ... 80 °C
- Degree of protection IP20 (when all terminal points are used)
- Maximum continuous operating voltage Uc (L-N): 335 V AC
- Maximum continuous operating voltage Uc (L-PE): 335 V AC
- Maximum continuous voltage Uc (N-PE): 264 V AC
- Nominal voltage Un: 240 V AC
- Nominal frequency: 50 Hz (60 Hz)
- UL connection data: Conductor cross section AWG 10...2, Tightening torque 30 lb-in.
- Standards and regulations: IEC 61643-11 2011, EN 61643-11 2012, UL Recognized, KEMA-KEUR, cUL Recognized
- Maximum discharge current Ina, (8/20) us: specified per device
- Residual voltage U;es (L-N): < 1.2 kV at rated current
- Residual voltage U;es (L-PE): < 2 kV at rated current
- Approvals: UL Recognized, KEMA-KEUR, IEC Cb Scheme, EAC
- Environmental compliance: China RoHS, unlimited environmentally friendly use period
Buy the Buy Phoenix Contact Lightning Surge Arrester Part Number 2800187 Online
Purchase the Phoenix Contact lightning and surge arrester online today to ensure dependable voltage surge protection in your electrical system. This plug-in device is ideal for single-phase networks with separate neutral and earth conductors, featuring varistor technology for superior transient suppression. It offers easy installation with accessories like wiring bridges and marking strips, and guarantees compliance with industry standards such as IEC and UL. Built for long-term durability, this surge protector safeguards sensitive equipment against electrical surges, with environmental ratings suitable for demanding outdoor and industrial environments. Secure your power system now with this reliable surge arrester
Get Phoenix Contact 2800187 today—designed for reliable surge protection with robust environmental rating and UL/IEC compliance.
Frequently Asked Questions
Where can I buy Phoenix Contact 2800187?
You can click on the BUY or RFQ button to purchase 2800187 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2800187?
You can download the 2800187 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2800187?
Phoenix Contact
