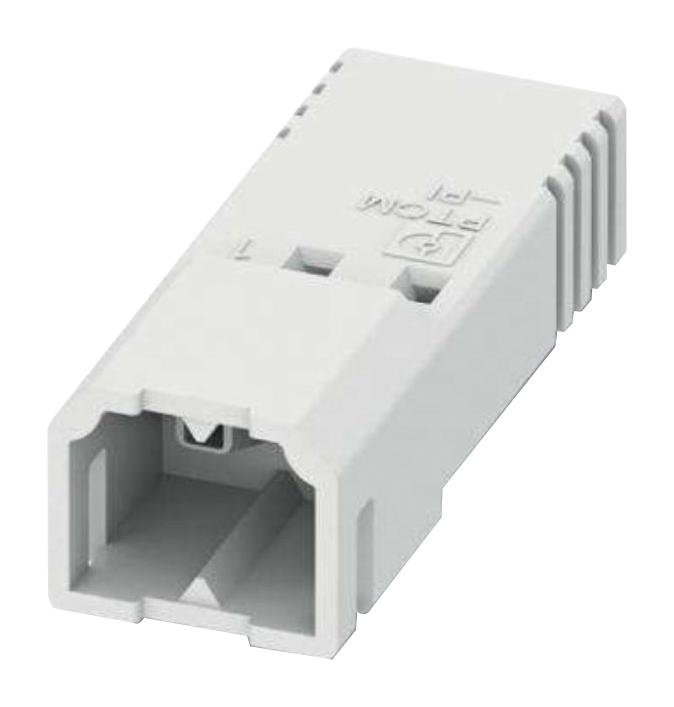

Phoenix Contact PTCM052PI25WH PCB connector
The PTCM 0.5/2-PI-2.5 WH connector is a compact printed-circuit board connector designed for reliable industrial applications. It features a White housing with a pitch of 2.5 mm, rated current of 6 A, and a rated voltage of 160 V. The connector utilizes crimp connection technology, with flexible conductor capacity of 0.14 mm² to 0.75 mm² or AWG 26 to 18. It is certified for flammability UL 94V-0 and rated for harsh environments with high insulation and surge voltage withstand capabilities, suitable for automation and control systems.
Phoenix Contact PTCM052PI25WH PCB connector Specifications:
- Pitch: 2.5 mm
- Number of positions: 2
- Rated current: 6 A
- Rated voltage: 160 V (III/2)
- Maximum external conductor diameter: 1.9 mm
- Conductor cross section flexible: 0.14 mm² ... 0.75 mm²
- Conductor cross section AWG: 26 ... 18
- Insulating material: PA
- Flammability rating: UL 94V-0
- Glow wire flammability index: GWFI 850
- Glow wire ignition temperature: GWIT 775°C
- Temperature for ball pressure test: 125°C
- Insertion strength per position: approx. 3 N
- Withdrawal strength per position: approx. 2 N
- Contact resistance: 3.4 mΩ
- Impedance withstand voltage: 2.95 kV
- Operating temperature: -5°C to 100°C
- Certifications: UL, CSA recognized
- Rated surge voltage: 2.5 kV
- Housing material: PA
- Environmental protection: IP20
Buy the Phoenix Contact PTCM 0.5/2-PI-2.5 WH – Reliable PCB Connector for Industrial Applications
Experience the high-quality performance of the Phoenix Contact PTCM 0.5/2-PI-2.5 WH PCB connector, ideal for industrial automation systems requiring reliable electrical connections. With a compact white housing, rated 6 A current at 160 V, and crimp connection technology, this connector ensures secure, durable contact in harsh environments. Suitable for flexible conductors between 0.14 and 0.75 mm² or AWG 26 to 18, it undergoes rigorous testing for safety and longevity. Buy online now to ensure your project benefits from top-tier connectivity solutions.
Get Phoenix Contact PTCM 0.5/2-PI-2.5 WH today—built for precision, durability, and reliable signal connection in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact PTCM052PI25WH?
You can click on the BUY or RFQ button to purchase PTCM052PI25WH from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTCM052PI25WH?
You can download the PTCM052PI25WH datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTCM052PI25WH?
Phoenix Contact
