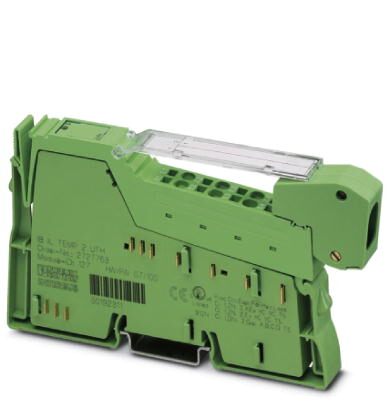

Phoenix Contact 2861386 Inline Temperature Measurement Terminal
The PHOENIX CONTACT IB IL TEMP 2 UTH-PAC (2861386) is a specialized inline terminal designed for temperature measurement applications within Inline stations. This terminal enables the acquisition of signals from standard thermocouples, supporting a wide range of thermocouple types according to DIN EN 60584-1 and DIN 43710, as well as linear voltage inputs ranging from -15 mV to +85 mV. Key features include independent channel parameterization via the bus system, internal detection and compensation of cold junction temperature, and the ability to measure temperature in absolute or differential modes. The terminal's robust design and comprehensive features make it suitable for industrial automation and process control applications where accurate and reliable temperature measurement is critical.
Phoenix Contact 2861386 Inline Temperature Measurement Terminal Specifications:
- Packing unit: 1 pc
- GTIN: 4017918894320
- Weight per Piece (excluding packing): 97.100 g
- Custom tariff number: 85389091
- Country of origin: Germany
- Width: 12.2 mm
- Height: 136.8 mm
- Depth: 71.5 mm
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Permissible humidity (operation): 10 % ... 95 % (non-condensing)
- Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing)
- Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Degree of protection: IP20
- Mounting type: DIN rail
- Net weight: 67 g
- Operating mode: Process data operation with 2 words
- Diagnostics messages: Failure of the internal I/O supply, I/O error message sent to the bus coupler, Failure of or insufficient communications power, Peripheral fault, User error
- Designation (Inline local bus): Inline data jumper
- Transmission speed: 500 kbps
- Supply voltage (Communications power UL): 7.5 V DC (via voltage jumper)
- Current consumption (Communications power UL): typ. 43 mA
- Max. Current consumption (Communications power UL): max. 60 mA
- Supply voltage (Supply of analog modules UANA): 24 V DC (via voltage jumper)
- Supply voltage range: 19.2 V DC ... 30 V DC (including all tolerances, including ripple)
- Current consumption (Supply of analog modules UANA): typ. 11 mA
- Max. Current consumption (Supply of analog modules UANA): max. 18 mA
- Power consumption: typ. 587 mW
- Number of inputs: 2 (Thermocouples or linear voltage)
- Input name: Analog UTH inputs
- Sensor types that can be used (TC): U, T, L, J, E, K, N, S, R, B, C, W, HK
- Measured value representation: 16 bits (15 bits + sign bit)
- A/D conversion time: typ. 120 µs (per channel)
- Process data update: max. 30 ms (For both channels)
- Test section: 7.5 V supply (bus logics)/24 V analog supply (analog I/O) 500 V AC 50 Hz 1 min.
- Environmental Product Compliance: China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
