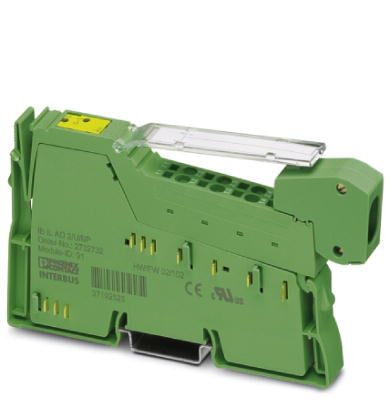

Phoenix Contact 2861467 Inline Analog Output Terminal
The PHOENIX CONTACT IB IL AO 2/U/BP-PAC (2861467) is a versatile inline analog output terminal block ideal for applications requiring precise and reliable analog signal processing. It offers two outputs capable of delivering 0 to 10V or -10 to 10V signals, with a resolution of 16 bits and a conversion time of less than 100 µs. The terminal block's short update time (<1ms) and short-circuit protection ensure accurate and stable measurements. It is designed for DIN rail mounting and utilizes an inline data jumper connection method, making it suitable for integration into complex industrial automation systems. Its robust design and wide operating temperature range (-25°C to 55°C) ensure reliable performance in demanding environments.
Phoenix Contact 2861467 Inline Analog Output Terminal Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 96.8 g
- Custom tariff number: 85389091
- Country of origin: Germany
- Width: 12.2 mm
- Height: 136.8 mm
- Depth: 71.5 mm
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Permissible humidity (operation): 10 % ... 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport): 10 % ... 95 % (according to DIN EN 61131-2)
- Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Degree of protection: IP20
- Mounting type: DIN rail
- Net weight: 48 g
- Designation: Inline local bus
- Connection method: Inline data jumper
- Transmission speed: 500 kBit/s
- Transmission physics: Copper
- Communications power UL: 7.5 V DC (via voltage jumper)
- Current consumption from UL: max. 40 mA
- Current consumption from UL (typical): typ. 33 mA
- I/O supply voltage UANA: 24 V DC
- Current consumption from UANA: max. 35 mA
- Current consumption from UANA (typical): typ. 25 mA
- Number of outputs: 2
- Output connection method: 2-wire (shielded)
- Output name: Analog outputs
- D/A conversion time: < 100 µs
- D/A resolution: 16 bit
- Type of protection: Transient protection of outputs
- Data formats: IL, IB ST
- Representation of output values: 16 bits (15 bits + sign)
- DAC resolution: 13 Bit
- Process data update: < 2 ms
- Voltage output signal: 0 V ... 10 V
- Voltage output signal (alternative): -10 V ... 10 V
- Load/output load voltage output: > 2 kΩ 0.05 %
- Load/output load voltage output (typical): typ. 0.02 % (of output range final value)
- Connection in acc. with standard: CUL
- Protection class: III, IEC 61140, EN 61140, VDE 0140-1
- eCl@ss 4.0: 27250303
- eCl@ss 4.1: 27250303
- eCl@ss 5.0: 27250303
- eCl@ss 5.1: 27242601
- eCl@ss 6.0: 27242601
- eCl@ss 7.0: 27242601
- eCl@ss 8.0: 27242601
- ETIM 2.0: EC001431
- ETIM 3.0: EC001596
- ETIM 4.0: EC001596
- ETIM 5.0: EC001596
- UNSPSC 6.01: 43172015
- UNSPSC 7.0901: 43201404
- UNSPSC 11: 43172015
- UNSPSC 12.01: 43201404
- UNSPSC 13.2: 43201404
