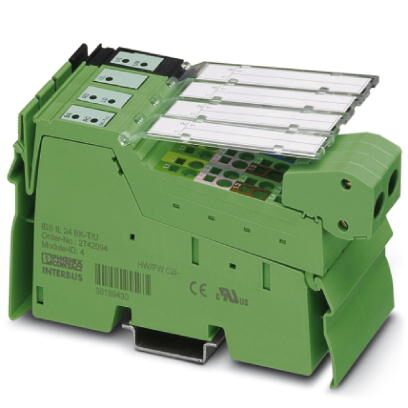

Phoenix Contact 2862000 IBS IL 24 Bus Coupler
The PHOENIX CONTACT IBS IL 24 BK-T/U-2MBD-PAC bus coupler enables remote bus connections utilizing copper technology. This device provides electrical isolation and is certified for use in potentially explosive environments, ensuring reliable communication in demanding industrial settings. It supports INTERBUS remote bus communication with a transmission speed of 2 MBit/s and offers various supply voltage options for flexible integration into automation systems. The coupler's robust design and comprehensive approvals make it a dependable solution for connecting field devices and central control systems.
Phoenix Contact 2862000 IBS IL 24 Bus Coupler Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 260.0 GRM
- Custom tariff number: 85389091
- Country of origin: Germany
- Utilization restriction: EMC: class A product, see manufacturer's declaration
- Width: 48.8 mm
- Height: 135 mm
- Depth: 71.5 mm
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Permissible humidity (operation): 75 % ... 85 %
- Permissible humidity (storage/transport): 75 % ... 85 %
- Air pressure (operation): 80 kPa ... 106 kPa
- Air pressure (storage/transport): 70 kPa ... 106 kPa
- Degree of protection: IP20
- Weight: 142 g
- Mounting type: DIN rail
- Test section: 5 V supply, incoming remote bus/5 V supply outgoing remote bus 500 V AC 50 Hz 1 min
- Fieldbus system: Lokalbus
- Designation: Inline local bus
- Connection method: Inline data jumper
- Transmission speed: 2 MBit/s
- Fieldbus system (remote): INTERBUS
- Connection method (remote): 2x 6-pos. Inline shield connectors
- Transmission physics: Copper
- Supply voltage: 24 V DC
- Supply voltage range: 19.2 V DC ... 30 V DC
- Current consumption: max. 1.25 A
- Communications power UL: 7.5 V DC ±5 %
- Power supply at UL: max. 2 A DC
- Main circuit supply UM: 24 V DC -15 % / +20 %
- Power supply at UM: max. 8 A DC
- Segment supply voltage US: 24 V DC -15 % / +20 %
- Power supply at US: max. 8 A DC
- I/O supply voltage UANA: 24 V DC -15 % / +20 %
- Power supply at UANA: max. 0.5 A DC
- Number of local bus devices: 63
- Number of devices with parameter channel: 62
- Number of branch terminals with remote bus branch: max. 15
