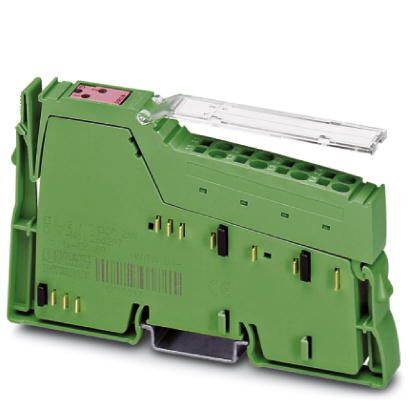

Phoenix Contact 2863119 Inline Relay Terminal
The PHOENIX CONTACT IB IL 24/48 DOR 2/W-PAC (2863119) is a versatile inline relay terminal designed for integration into Inline stations. This terminal provides two independent, floating SPDT relay contacts, offering flexibility in control and automation systems. It supports a nominal current of 2A per output and a total current of 4A for the terminal, making it suitable for switching ohmic loads and various industrial applications. The terminal's robust design includes diagnostic and status indicators, ensuring reliable operation and easy troubleshooting. It is DIN rail mountable and operates within a wide temperature range, making it suitable for demanding environments. Its floating connections allow for independent actuator control, enhancing system flexibility and efficiency. The terminal is also compliant with various industry standards and approvals, ensuring safety and reliability in diverse applications.
Phoenix Contact 2863119 Inline Relay Terminal Specifications:
- Packing unit: 1 pc
- GTIN: 4017918939229
- Weight per Piece (excluding packing): 80.900 g
- Custom tariff number: 85389091
- Country of origin: Germany
- Width: 12.2 mm
- Height: 119.8 mm
- Depth: 71.5 mm
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Permissible humidity (operation): 10 % ... 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport): 10 % ... 95 % (according to DIN EN 61131-2)
- Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Degree of protection: IP20
- Mounting type: DIN rail
- Net weight: 63 g
- Operating mode: Process data mode with 2 bits
- Designation (Inline local bus): 2 channels
- Connection method (Inline local bus): Inline data jumper
- Transmission speed: 500 kbps
- Supply voltage (Communications power): 7.5 V DC (via voltage jumper)
- Current consumption: max. 30 mA
- Power consumption: 0.23 W
- Output description (Relay outputs): SPDT relay contact
- Connection method (Digital outputs): Spring-cage connection
- Number of outputs: 2 (floating contacts)
- Nominal output voltage: 24 V AC, 48 V DC
- Maximum output current per channel: 2 A
- Maximum output current per module / terminal block: 4 A
- Switching current (min): 10 µA
- Switching current (max): 2 A (30 V DC), 1 A (60 V DC)
- Switching capacity: 60 W, 62 VA (ohmic)
- Limiting continuous current: 2 A (at maximum ambient temperature)
- Contact type: 2 floating PDT contacts
- Switching voltage (min): 10 mV (DC)
- Switching voltage (max): 30 V AC (PELV (EN 61131)), 60 V DC (PELV (EN 61131))
- Mechanical service life: 2x 10⁵ cycles
- Electrical isolation: Relay contact / Bus logics 1.5 kV 50 Hz 1 min., Contact/contact 1 kV 50 Hz 1 min., Contact / PE 1 kV 50 Hz 1 min.
- Protection class: III, IEC 61140, EN 61140, VDE 0140-1
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
