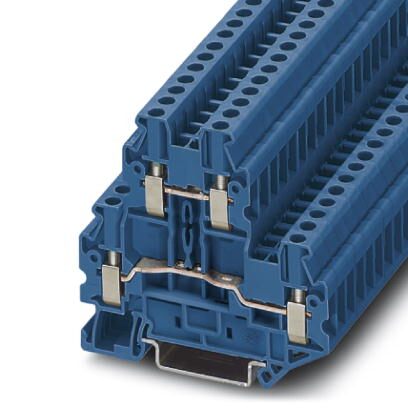

Phoenix Contact 3044649 Double Level Terminal Block
The Phoenix Contact UTTB 2,5 BU double-level terminal block provides a compact and versatile solution for connecting multiple circuits in a single space-saving footprint. Its two function shafts per level allow for quick implementation of potential distribution tasks, and the option to connect levels with a vertical bridge enhances flexibility. Tested for railway applications and featuring a robust design, this terminal block is ideal for use in machinery, plant engineering, and process industries. It supports a wide range of conductor sizes and offers clear labeling for easy identification and maintenance.
Phoenix Contact 3044649 Double Level Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 4
- Nominal cross section: 2.5 mm²
- Color: blue
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering, Process industry
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Connection in acc. with standard: IEC 60947-7-1
- Nominal current IN: 24 A
- Maximum load current: 28 A
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec.; UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1): 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 5.2 mm
- Length: 69.9 mm
- Height NS 35/7,5: 65 mm
- Height NS 35/15: 72.5 mm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Stripping length: 9 mm
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
