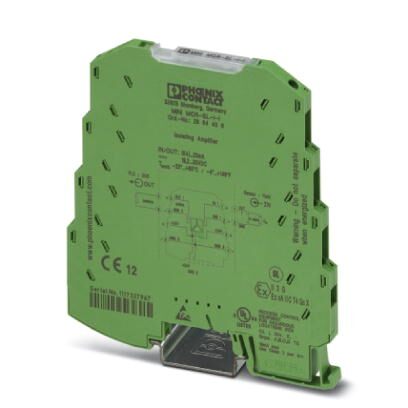

Phoenix Contact 2864406 3-way Isolating Amplifier
The PHOENIX CONTACT MINI MCR-SL-I-I is a highly compact isolating amplifier designed for electrical isolation, conversion, amplification, and filtering of standard analog signals. This 6.2 mm wide amplifier is ideal for applications requiring electrical isolation and signal conditioning. It offers 3-way isolation, low power consumption, and can be used as an entry-level alternative to configurable signal conditioners. The device supports standard signals 0...20 mA or 4...20 mA on both the input and output sides, electrically isolated. It is commonly used in industrial automation, process control, and data acquisition systems where signal isolation and amplification are crucial for reliable data transmission.
Phoenix Contact 2864406 3-way Isolating Amplifier Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 85.0 g
- Custom tariff number: 85437090
- Country of origin: Germany
- Utilization restriction: EMC: class A product, see manufacturer's declaration
- Width: 6.2 mm
- Height: 93.1 mm
- Depth: 102.5 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Degree of protection: IP20
- Number of inputs: 1
- Configurable/programmable: no
- Current input signal: 0 mA ... 20 mA, 4 mA ... 20 mA
- Max. input current: 50 mA
- Input resistance current input: approx. 50 Ω
- Number of outputs: 1
- Current output signal: 0 mA ... 20 mA, 4 mA ... 20 mA
- Max. output current: 28 mA
- Load/output load current output: < 500 Ω (at 20 mA)
- Nominal supply voltage: 24 V DC
- Supply voltage range: 19.2 V DC ... 30 V DC
- Max. current consumption: < 20 mA
- Power consumption: < 450 mW
- Connection method: Screw connection
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Stripping length: 12 mm
- Screw thread: M3
- No. of channels: 1
- Maximum transmission error: ≤ 0.1 % (of final value)
- Maximum temperature coefficient: < 0.01 %/K
- Temperature coefficient, typical: < 0.002 %/K
- Limit frequency (3 dB): approx. 100 Hz
- Step response (10-90%): approx. 3.2 ms
- Protective circuit: Transient protection
- Electrical isolation: Basic insulation according to EN 61010
- Overvoltage category: II
- Degree of pollution: 2
- Rated insulation voltage: 50 V AC/DC
- Test voltage, input/output/supply: 1.5 kV (50 Hz, 1 min.)
- Noise emission: EN 61000-6-4
- Noise immunity: EN 61000-6-2
- Color: green
- Housing material: PBT
- Mounting position: any
- Conformance: CE-compliant
- ATEX: II 3 G Ex nA IIC T4 Gc X
- UL, USA / Canada: UL 508 Recognized
- GL: GL EMC 2 D
