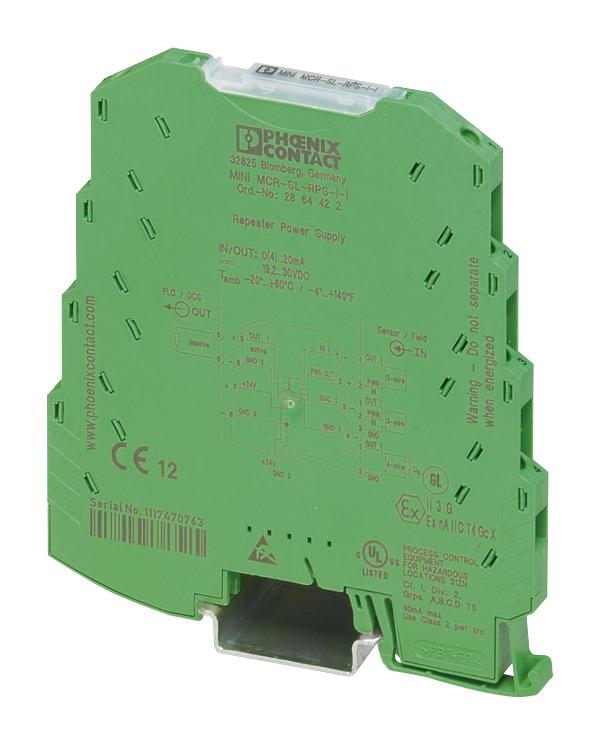

Phoenix Contact 2864422 Repeater Power Supply
The MINI MCR-SL-RPS-I-I repeater power supply by Phoenix Contact provides electrical isolation, amplification, and filtering of standard analog signals such as 4–20 mA. With a compact width of 6.2mm and a height of 93.1mm, it is suitable for DIN rail mounting and can operate across a wide temperature range from -20°C to 60°C. It supports both isolator and repeater functions, supplying currents up to 28mA with excellent EMI immunity and transient protection. The device features screw connection terminals, basic insulation per EN 61010, and is UL Recognized and CE compliant, making it ideal for industrial automation and control systems.
Phoenix Contact 2864422 Repeater Power Supply Specifications:
- Width: 6.2 mm
- Height: 93.1 mm
- Depth: 102.5 mm
- Ambient Temperature (Operation): -20°C...60°C
- Input Signal: 4 mA ... 20 mA, Max. 28 mA
- Output Signal: 4 mA ... 20 mA, Max. 28 mA
- Power Supply Voltage: 19.2 V DC ... 30 V DC, Nominal 24 V DC
- Supply Current: < 900 mW at 24 V DC
- Connection: Screw connection, conductor cross section 0.2 mm² to 2.5 mm²
- Isolation: Basic insulation according to EN 61010, 1.5 kV test voltage
- Electromagnetic Compatibility: CE, UL Recognized, CSA
- Pollution Degree: 2
- Degree of Pollution: 2
- Compliance: EN 61000-4-2/3/4/6, EMC Directive
- Mounting: DIN rail according to EN 60715
- Housing Material: PBT
- Fire Protection: DIN EN 45545-2 R22-R26
Buy the Phoenix Contact Series MINI MCR Series Repeater Power Supply: 2864422
Purchase the Phoenix Contact MINI MCR-SL-RPS-I-I repeater power supply online today to ensure reliable electrical signal isolation, amplification, and filtering in your industrial automation setup. This compact, UL Recognized device supports 4–20 mA signals, provides transient protection, and features screw connection terminals for secure wiring. Suitable for DIN rail mounting, it operates across -20°C to 60°C, with excellent EMI immunity. Enhance your control system’s performance and safety with this high-quality industrial power supply today.
Buy Phoenix Contact MINI MCR-SL-RPS-I-I now and experience unmatched reliability and performance in signal isolation and filtering.
Frequently Asked Questions
Where can I buy Phoenix Contact 2864422?
You can click on the BUY or RFQ button to purchase 2864422 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2864422?
You can download the 2864422 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2864422?
Phoenix Contact
