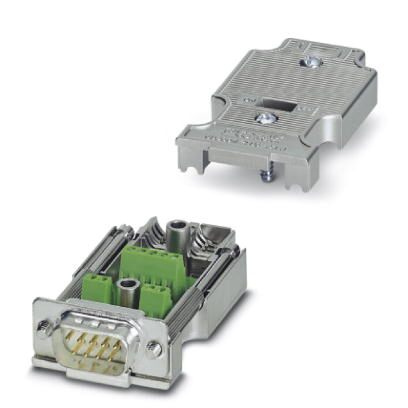

Phoenix Contact 2904467 9-Position D-Sub Bus Connector
The PHOENIX CONTACT SUBCON-PLUS-M/AX 9 is a robust D-SUB bus connector engineered for reliable data transmission in diverse industrial environments. Its axial design with two cable entries allows for flexible cable routing, while the knurled screws simplify assembly under field conditions. The connector supports high transmission speeds and is compatible with various bus systems including RS-232, RS-422, and RS-485. It is designed for universal use across different systems and offers a high level of EMC protection. The connector is ATEX certified and meets stringent environmental standards, ensuring suitability for demanding applications.
Phoenix Contact 2904467 9-Position D-Sub Bus Connector Specifications:
- Packing unit: 1 pc
- GTIN: 4046356825573
- Weight per Piece (excluding packing): 40.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Max. cable diameter: 8.4 mm
- Min. cable diameter: 7.6 mm
- Width: 17 mm
- Height: 31.5 mm
- Length: 58.2 mm
- Ambient temperature (operation): -20 °C ... 75 °C
- Ambient temperature (storage/transport): -25 °C ... 80 °C
- Altitude: 5000 m
- Degree of protection: IP30
- Nominal voltage UN: 50 V DC
- Nominal current IN: 100 mA
- Bus system: Universal type for all systems
- Signal: RS-232
- Insertion/withdrawal cycles: > 200
- SUBCON fixing screws: 4-40 UNC
- Tightening torque: 0.4 Nm
- Housing material: ABS, metal-plated
- Pin assignment: 1, 2, 3, 4, 5, 6, 7, 8, 9
- MTTF (SN 29500 standard, temperature 25 °C, operating cycle 21 %): 6706 Years
- MTTF (SN 29500 standard, temperature 40 °C, operating cycle 34.25 %): 1817 Years
- MTTF (SN 29500 standard, temperature 40 °C, operating cycle 100 %): 155 Years
- Connection: D-SUB connection
- Number of positions: 9
- Connection method: D-SUB connector
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 0.5 mm²
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 0.5 mm²
- Min. AWG conductor cross section, flexible: 26
- Max. AWG conductor cross section, flexible: 20
- Stripping length: 4.5 mm
- Free from substances that could impair the application of coating: according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard
- ATEX: II 3 G Ex nA IIC T4 Gc X
- Noxious gas test: ISA-S71.04-1985 G3 Harsh Group A
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally Friendly Use Period = 50
