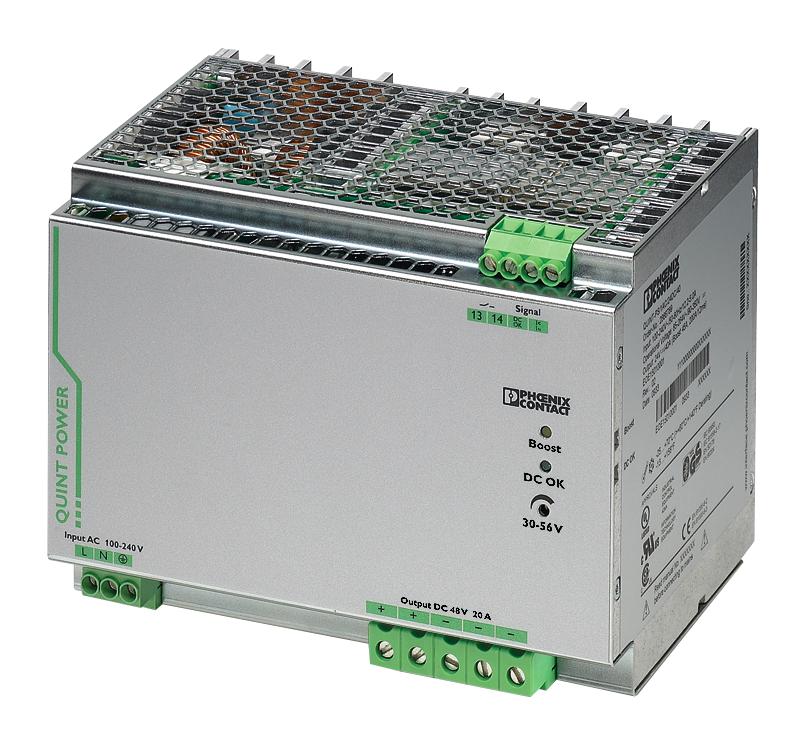

Phoenix Contact 2866695 Industrial Power Supply
The QUINT-PS/1AC/48DC/20 power supply unit by Phoenix Contact is a primary-switched DIN rail mountable device featuring SFB technology for selective fuse breaking and high system reliability. It offers an adjustable output voltage between 30 VDC and 56 VDC, with a maximum output power of 960 W and an efficiency exceeding 93%. Designed for industrial environments, it withstands temperatures from -25°C to 70°C, supports overload protection with POWER BOOST, and includes preventive operating state monitoring to enhance system uptime and safety.
Phoenix Contact 2866695 Industrial Power Supply Specifications:
- Dimensions: Width 12 mm, Height 27 mm, Depth 183 mm with alternative assembly
- Ambient temperature: -25°C to 70°C, derating above 60°C at 2.5%/K
- Protection degree: IP20, Max. altitude 6000 m
- Input voltage: 85-264 VAC / 90-300 V DC, 50/60 Hz, 20 A fast blow fuse
- Output voltage: 30-56 V DC, 20 A, 960 W, residual ripple < 50 mVpp
- Efficiency: >93% at 230 VAC, insulation voltage 4 kV AC input/output, MTBF >880,000 hours at 25°C
- Connection: Screw terminals, conductor cross-section 0.2-6 mm² input, 8-16 mm² output
- Protection: Transient surge protection, electronic components rated for industrial safety
- Certifications: UL, CSA, IEC, EN standards, RoHS compliant, suitable for industrial controls and automation
Buy the Phoenix Contact QUINT-PS/1AC/48DC/20 – Reliable Power Supply for Industrial Applications
Order the Phoenix Contact industrial power supply online today to ensure a reliable, efficient, and safe power source for your automation systems. Designed to operate continuously in harsh environments, this device offers adjustable voltage from 30 VDC to 56 VDC, supporting up to 20 A current with over 93% efficiency. Its high MTBF and comprehensive protection features help prevent downtime and costly failures. Secure your industrial operation now by purchasing online and benefit from fast delivery, trusted quality, and technical support tailored for demanding applications.
Buy Phoenix Contact QUINT-PS/1AC/48DC/20 now and experience unmatched reliability, efficiency, and system protection for your industrial automation needs.
Frequently Asked Questions
Where can I buy Phoenix Contact 2866695?
You can click on the BUY or RFQ button to purchase 2866695 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2866695?
You can download the 2866695 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2866695?
Phoenix Contact
