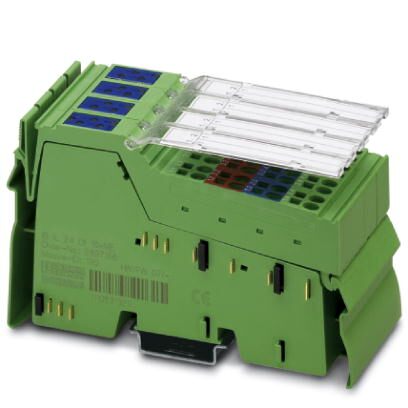

Phoenix Contact 2897156 Digital Input Terminal
This digital input terminal is designed for use within an inline station, providing 16 digital inputs for 24 V DC signals with high reliability. It features a 3-wire connection method, short-circuit and overload protection, and supports a local bus transmission speed of 500 kbps. The device is mounted on a DIN rail, with a net weight of 122g, and conforms to protection class III standards. Suitable for industrial automation and control systems, it has environmental resistance from 10% to 95% humidity and up to 3000 meters above sea level, with easy-to-access marking fields.
Phoenix Contact 2897156 Digital Input Terminal Specifications:
- Number of digital inputs: 16
- Input voltage: 24 V DC
- Input voltage range '0' signal: -3VDC to 5V
- Input voltage range '1' signal: 15V DC to 30 VDC
- Protection class: III
- Degree of protection: IP20
- Mounting: DIN rail
- Net weight: 122g
- Environmental conditions: 10% to 95% humidity, 70 kPa to 106 kPa (up to 3000 m elevation)
- Transmission speed: 500 kbps
- Connection method: Spring-cage connections
- Standards: IEC 61140, EN 61140, VDE 0140-1
- Certification: UL Recognized, cUL, cULus, EAC
- Dimensions: Not specified in current data
Buy the Phoenix Contact 2897156 – Reliable Digital Input Terminal for Industrial Applications
Purchase the Phoenix Contact digital input terminal with 16 channels, designed for industrial automation and control systems. It features 24 V DC inputs, IP20 protection, and DIN rail mounting for easy installation. With short-circuit and overload protection, diagnostic indicators, and a connection method using spring-cage terminals, it ensures reliable signal acquisition. Perfect for OEM and maintenance tasks, this device complies with international standards and offers robust performance in challenging environments. Order online today for fast delivery and trusted quality.
Get Phoenix Contact 2897156 today—built for precision and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact 2897156?
You can click on the BUY or RFQ button to purchase 2897156 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2897156?
You can download the 2897156 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2897156?
Phoenix Contact
