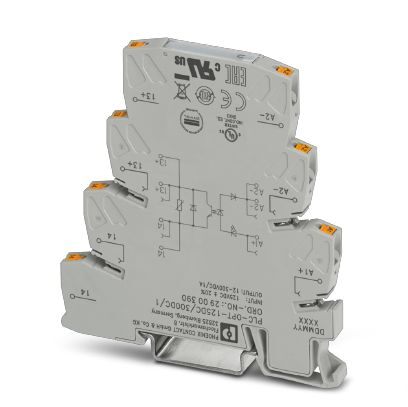

Phoenix Contact 2900390 Solid-State Relay Module
The PHOENIX CONTACT PLC-OPT-125DC/300DC/1 (part number 2900390) is a solid-state relay module designed for integration into PLC systems. It provides wear-free switching with no contact bounce, making it suitable for high-frequency applications. The module is resistant to vibrations and shocks, ensuring reliable operation in harsh industrial environments. It features a protective circuit in both the input and output, enhancing safety and preventing damage. With DC voltage outputs up to 300 V DC/1 A and the option of bridging adjacent modules, this relay module offers flexibility and scalability for various automation tasks. It is commonly used in industrial automation, process control, and machine control systems.
Phoenix Contact 2900390 Solid-State Relay Module Specifications:
- Packing unit: 1 STK
- GTIN: 4046356508933
- Weight per Piece (excluding packing): 32.000 g
- Custom tariff number: 85364900
- Country of origin: Germany
- Nominal input voltage UN: 125 V DC
- Input voltage range in reference to UN: 0.8 ... 1.1
- Input voltage range: 100 V DC ... 138 V DC
- Typical input current at UN: 6 mA
- Transmission frequency: 50 Hz
- Power dissipation for nominal condition: 0.75 W
- Output voltage range: 12 V DC ... 300 V DC
- Limiting continuous current: 1 A
- Voltage drop at max. limiting continuous current: < 500 mV
- Type of protection: Reverse polarity protection
- Protective circuit/component: Polarity protection diode
- Connection name (input side): Input side
- Connection method (input side): Push-in connection
- Stripping length (input side): 8 mm
- Conductor cross section solid (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input side): 26 ... 14
- Connection name (output side): Output side
- Connection method (output side): Push-in connection
- Stripping length (output side): 8 mm
- Conductor cross section solid (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output side): 26 ... 14
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Flammability rating according to UL 94: V0
- Standards/regulations: IEC 60664, EN 50178
- Degree of pollution: 2
- Overvoltage category: III
- Rated insulation voltage: 300 V
- Rated surge voltage: 4 kV
- Insulation: Basic insulation
- China RoHS: Environmentally Friendly Use Period = 50
