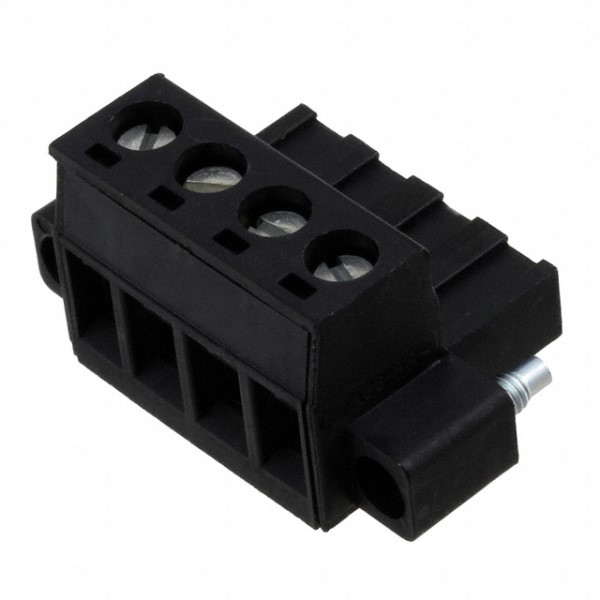

Phoenix Contact 1810231 MSTB 2.5/4-STF-5.08 BK Connector
The PHOENIX CONTACT MSTB 2,5/ 4-STF-5,08 BK is a robust printed-circuit board connector designed for reliable and secure connections in industrial applications. This connector features a 5.08 mm pitch and 4 positions, making it suitable for various power distribution and signal transmission needs. The screw connection ensures a tight and dependable connection, minimizing the risk of disconnections. It is ideal for use in control cabinets, automation systems, and other industrial environments where reliable power and signal connectivity are essential. It is rated for a nominal current of 12A and a rated voltage of 250V, and supports conductor cross-sections from 0.2 mm² to 2.5 mm².
Phoenix Contact 1810231 MSTB 2.5/4-STF-5.08 BK Connector Specifications:
- Base Series/Family: MSTB 2,5/..-STF
- Nominal Current: 12 A
- Rated Voltage: 250 V
- Pitch: 5.08 mm
- Number of Positions: 4
- Connection Type: Screw connection
- Color: Black
- Dimension a: 15.24 mm
- Nominal Cross Section: 2.5 mm²
- Conductor Cross Section Solid Min: 0.2 mm²
- Conductor Cross Section Solid Max: 2.5 mm²
- Conductor Cross Section Flexible Min: 0.2 mm²
- Conductor Cross Section Flexible Max: 2.5 mm²
- Conductor Cross Section AWG Min: 24
- Conductor Cross Section AWG Max: 12
- Custom Tariff Number: 85366990
- Country of Origin: United States
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 27260701
- eCl@ss 5.0: 27260701
- eCl@ss 5.1: 27141190
- eCl@ss 6.0: 27260704
- eCl@ss 7.0: 27440402
- eCl@ss 8.0: 27440309
- ETIM 3.0: EC001121
- ETIM 4.0: EC002638
- ETIM 5.0: EC002638
- UNSPSC 6.01: 30211810
- UNSPSC 7.0901: 39121409
- UNSPSC 11: 39121409
- UNSPSC 12.01: 39121409
- UNSPSC 13.2: 39121409
- CSA Nominal Current: 15 A
- CSA Nominal Voltage: 300 V
- VDE Gutachten Nominal Current: N/A
- VDE Gutachten Nominal Voltage: N/A
- IECEE CB Scheme: N/A
- CCA: N/A
- EAC: N/A
- cULus Recognized Nominal Current: 15 A
- cULus Recognized Nominal Voltage: 150 V
