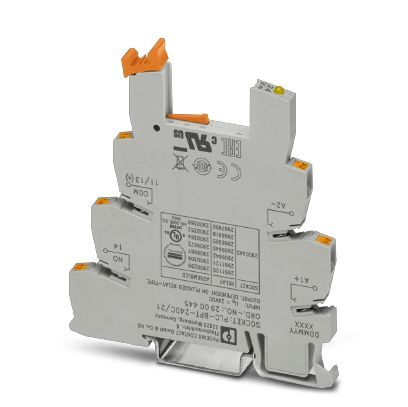

Phoenix Contact 2900445 PLC Relay Base
The Phoenix Contact PLC-BPT-24DC/21 relay base is a versatile component for industrial automation applications. Designed for mounting on DIN rail NS 35/7.5, this base accommodates one pole change contact (PDT) and operates with an input voltage of 24V DC. It incorporates a push-in connection for ease of wiring and includes protective circuits like a damping diode and polarity protection diode. The base is ideal for use in programmable logic controller (PLC) systems, providing a secure and organized platform for relay integration. Its robust design and reliable performance make it suitable for demanding industrial environments.
Phoenix Contact 2900445 PLC Relay Base Specifications:
- Packing unit: 1 STK
- Minimum order quantity: 10 STK
- GTIN: 4046356507592
- Weight per Piece (excluding packing): 32.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Nominal input voltage UN: 24 V DC
- Status display: LED
- Protective circuit: Damping diode, polarity protection diode
- Connection name (input side): Input side
- Connection method (input side): Push-in connection
- Stripping length (input side): 8 mm
- Conductor cross section solid (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input side): 26 ... 14
- Connection name (output side): Output side
- Connection method (output side): Push-in connection
- Stripping length (output side): 8 mm
- Conductor cross section solid (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output side): 26 ... 14
- Note: Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500....
- Color: green
- Operating mode: 100% operating factor
- Connection in acc. with standard: CUL
- Flammability rating according to UL 94: V0
- Environmental Product Compliance (China RoHS): Environmentally Friendly Use Period = 50
