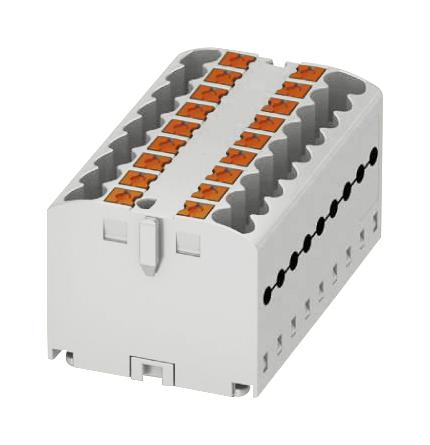

Phoenix Contact PTFIX12X25WH Distribution Block
The PTFIX distribution block is a white, push-in connection terminal with 12 connections rated at 24 A and 500 V. It features quick, tool-free wiring, space-saving transverse mounting, and DIN rail compatibility. Made from flame-retardant PA, it is suitable for rail vehicles and industrial automation. It supports wire sizes from AWG 26 to 12, with a width of 31.2 mm, height of 21.2 mm, and length of 28.2 mm. Suitable for various environments with UL 94V-0 flammability rating and safety standards compliance.
Phoenix Contact PTFIX12X25WH Distribution Block Specifications:
- Number of connections: 12
- Rated current: 24 A
- Nominal voltage: 500 V
- Connection method: Push-in connection
- Cross section: 0.14 mm² - 4 mm²
- Wire range: AWG 26 - 12
- Width: 31.2 mm
- Height: 21.2 mm
- Length: 28.2 mm
- Material: PA (Polyamide)
- Flammability rating: UL 94V-0
- Maximum power dissipation: 0.77 W
- Rated surge voltage: 6 kV
- Environmental: Fire protection for rail vehicles DIN EN 45545-2 R22-R26
- Compliance: UL Recognized, cUL, CSA
- Stripping length: 8-10 mm
- Temperature index: 130°C
- Standards: IEC 60998-2-2, UL 94V-0
Buy the Phoenix Contact Series PTFIX Distribution Block: PTFIX12X25WH
Secure your installation with the Phoenix Contact distribution block PTFIX12X25WH. Featuring 12 push-in connections for quick, tool-free wiring, rated at 24 A and 500 V, it’s ideal for automation and rail applications. Made from flame-retardant PA and UL 94V-0 rated, it ensures safety and durability. Its space-saving transverse mounting reduces rail space by up to 50%. Versatile and easy to install, this distribution block is perfect for professional electrical setups needing reliable, compliant connectivity.
Buy Phoenix Contact PTFIX12X25WH now and experience unmatched reliability and space-saving performance in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX12X25WH?
You can click on the BUY or RFQ button to purchase PTFIX12X25WH from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX12X25WH?
You can download the PTFIX12X25WH datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX12X25WH?
Phoenix Contact
