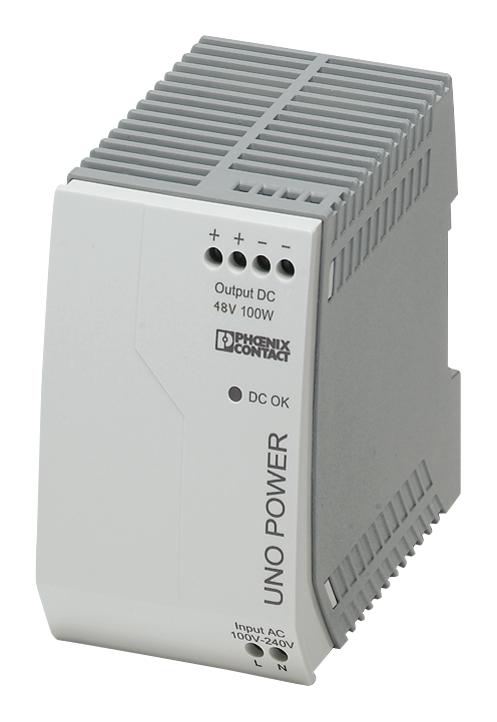

Phoenix Contact 2902996 Power Supply Unit
Primary-switched UNO POWER power supply designed for DIN rail mounting. It accepts a single-phase input and provides a 48 V DC output with a power capacity of 100 W, making it ideal for compact control boxes. Features include high energy efficiency over 90%, low idling losses under 0.3 W, and wide temperature operation from -25°C to +70°C. It supports various circuit breakers from 6A to 16A, has transient surge protection, and complies with industry standards for safety and performance, ensuring reliable power in demanding environments.
Phoenix Contact 2902996 Power Supply Unit Specifications:
- Dimensions: Not specified
- Input Voltage: 85 V AC to 264 V AC
- Output Voltage: 48 V DC
- Output Power: 100 W
- Output Current: 2.1 A
- Efficiency: Greater than 90%
- Ambient Temperature (Operation): -25°C to 70°C (derating at 55°C-70°C: 2.5%/K)
- Ambient Temperature (Storage/Transport): -40°C to 85°C
- Degree of Protection: IP20
- Input Fuse: 4 A (slow-blow, internal)
- Max. Relative Humidity (Operation): < 95%
- Insulation Voltage (Input/Output): 4 kV AC
- Standards and Certifications: UL Recognized, cUL Listed, CE, EN 61000-4-11
- Vibration (Operation): < 15 Hz with amplitude +2.5 mm
- Mounting: DIN rail compatible, alignable horizontally 0 mm and vertically 30 mm
- Overvoltage and surge protection: Yes
Buy the Buy Phoenix Contact Power Supply Unit UNO-PS/1AC/48DC/100W Part Number 2902996 Online
Discover the Phoenix Contact power supply unit designed for reliable DIN rail mounting. This compact, efficient device offers 48 V DC at 100 W, ensuring continuous operation in control cabinets. Featuring over 90% efficiency, low idling losses, and broad temperature tolerance, it performs under demanding industrial environments. Easy to install with snap-on mounting, it includes surge protection and is compliant with industry standards, making it an essential component for dependable automation and control systems. Order online today for swift delivery and superior performance.
Buy Phoenix Contact UNO-PS/1AC/48DC/100W now and experience unmatched reliability and energy-efficient power supply solutions for industrial applications.
