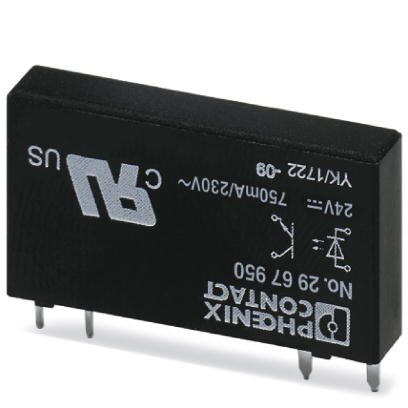

Phoenix Contact OPT24DC230AC1 Miniature Solid State Relay
The PHOENIX CONTACT OPT-24DC/230AC/ 1 is a miniature plug-in solid-state relay engineered for robust performance in demanding industrial environments. Its solid-state design ensures wear-free operation and high reliability, while its vibration resistance makes it suitable for applications exposed to mechanical stress. The relay offers zero-voltage switching at the AC output, minimizing inrush currents and protecting connected loads. With a 24V DC input and a 24-253V AC output, it provides versatile switching capabilities for a wide range of applications, including industrial automation, process control, and lighting systems. Its compact size and plug-in design simplify integration into existing control panels and systems.
Phoenix Contact OPT24DC230AC1 Miniature Solid State Relay Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Weight per Piece (excluding packing): 5.52 g
- Custom tariff number: 85364190
- Country of origin: Japan
- Width: 5 mm
- Height: 28 mm
- Depth: 15 mm
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Nominal input voltage UN: 24 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Switching threshold "0" signal, voltage: ≤ 5 V
- Switching threshold "1" signal voltage: ≥ 10 V
- Typical input current at UN: 3 mA
- Typical response time: 6 ms (at UN)
- Typical turn-off time: 500 µs (at UN)
- Transmission frequency: 10 Hz
- Power dissipation for nominal condition: 0.8 W
- Output voltage range: 24 V AC ... 253 V AC
- Limiting continuous current: 0.75 A
- Maximum inrush current: 30 A (10 ms)
- Min. load current: 10 mA
- Leakage current: < 1 mA
- Max. load value: 4.5 A (2s)
- Voltage drop at max. limiting continuous current: < 1 V
- Output circuit: 2-conductor floating, zero voltage switch
- Type of protection: RCV circuit
- Protective circuit/component: RCV circuit
- Test voltage input/output: 2.5 kV (50 Hz, 1 min.)
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Degree of protection: RT III (wash-proof)
- Standards/regulations (IEC): IEC 62103
- Standards/regulations (EN): EN 50178
- Rated surge voltage/insulation: Basic insulation
- Degree of pollution: 2
- Overvoltage category: III
- eCl@ss 4.0: 27371102
- eCl@ss 4.1: 27371102
- eCl@ss 5.0: 27371001
- eCl@ss 5.1: 27371001
- eCl@ss 6.0: 27371604
- eCl@ss 7.0: 27371604
- eCl@ss 8.0: 27371604
- ETIM 2.0: EC001504
- ETIM 3.0: EC001504
- ETIM 4.0: EC001504
- ETIM 5.0: EC001504
- UNSPSC 6.01: 30211916
- UNSPSC 7.0901: 39121542
- UNSPSC 11: 39121542
- UNSPSC 12.01: 39121542
- UNSPSC 13.2: 39121542
