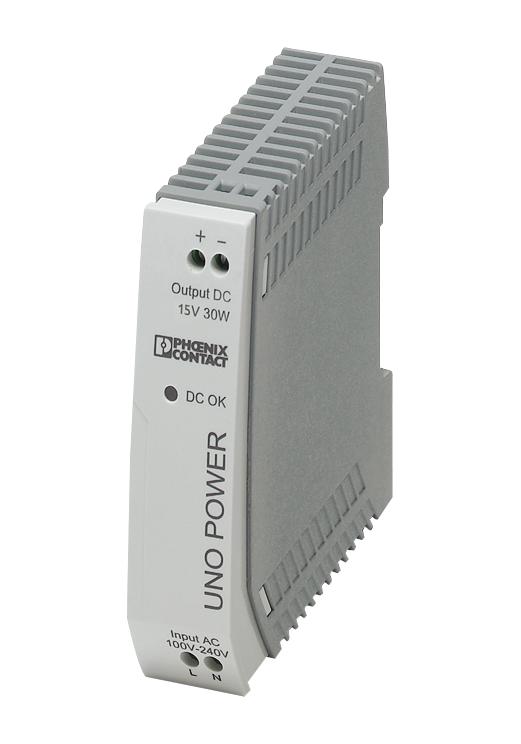

Phoenix Contact 2903000 Power Supply
Primary-switched UNO POWER power supply designed for DIN rail mounting. It supports a single-phase input and provides an output of 15 V DC with a power capacity of 30 W. The unit features high efficiency over 90 %, low idling losses under 0.3 W, and is suitable for outdoor installation with a wide operating temperature range of -25°C to +70°C. Compact and energy-efficient, it ensures reliable performance in control cabinets, with protection class IP20, conforming to safety and industrial standards such as IEC 60950-1 and UL. Easy to install, it is ideal for industrial automation applications.
Phoenix Contact 2903000 Power Supply Specifications:
- Dimensions: Compact size for DIN rail mounting
- Input: Single-phase AC voltage, 85-264 V
- Output: 15 V DC, 30 W power capacity
- Efficiency: Over 90 % under full load
- Idle Power Loss: Less than 0.3 W
- Operating Temperature: -25°C to +70°C (derating above 55°C)
- Storage/Transport Temperature: -40°C to 85°C
- Protection Class: IP20
- Insulation Voltage: 4 kV AC input/output
- Vibration Resistance: IEC 60068-2-6, 15 Hz ... 150 Hz, 2.3g
- Standards Compliance: IEC 60950-1, EN 60204-1, UL, cUL, CB scheme
- Weight: 0.15 kg
- Mounting: Snap-on DIN rail
- Certifications: UL Recognized, cUL Listed, EAC, IEC, EN standards
Buy the Phoenix Contact 2903000 – Reliable Power Supply for Industrial Applications
Purchase the Phoenix Contact power supply unit designed for DIN rail mounting with a 15 V DC output and 30 W power capacity. This energy-efficient, high-performance supply features over 90 % efficiency, low idle losses, and a wide operating temperature range from -25°C to +70°C. Its compact design allows for easy installation and space-saving in control cabinets, meeting industry standards and certifications. Ideal for industrial automation, outdoor use, and demanding environments, it ensures reliable power delivery for your control systems. Buy online now for fast, trusted delivery.
Order your Phoenix Contact Series 2903000 power supply today and give your industrial projects the dependable energy they deserve.
Frequently Asked Questions
Where can I buy Phoenix Contact 2903000?
You can click on the BUY or RFQ button to purchase 2903000 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2903000?
You can download the 2903000 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2903000?
Phoenix Contact
