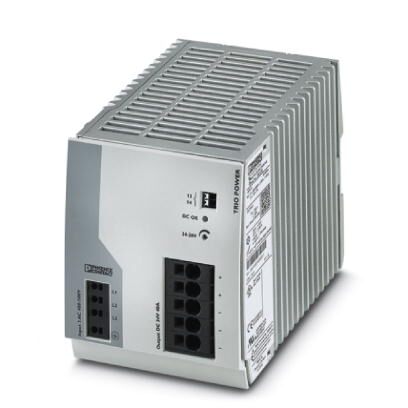

Phoenix Contact 2903156 Industrial Power Supply
The TRIO power supply unit is designed for DIN rail mounting, providing a reliable 24 V DC output at 40 A with 3-phase input. It features dynamic boost with 150% of the nominal current for five seconds, ensuring system availability under peak loads. The device offers tool-free fast connection technology adaptable for solid and stranded conductors with ferrules, making installation quick and secure. Its robust electrical and mechanical design withstands high vibration and shock, and it operates reliably from -25°C to +70°C, making it suitable for demanding industrial environments.
Phoenix Contact 2903156 Industrial Power Supply Specifications:
- Dimensions: Compact DIN rail mounted unit
- Input voltage range: 3x 400 V AC ... 500 V AC -20 % ...+15 %
- Input fuse: 6.3 A (internal)
- Output voltage: 24 V DC ... 28 V DC (constant capacity restricted above 24 V DC)
- Residual ripple: < 50 MVpp
- Degree of protection: IP20
- Ambient temperature (operation): -25 °C ... 70 °C (derating above 60°C at 2.5 %/K)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Relative humidity: < 95 % (non-condensing)
- Climatic class: 3K3 (EN 60721)
- Installation height: < 4000 m (derating above 2000 m at 10 %/1000 m)
- Standards: UL Recognized, UL Listed, cUL Recognized, cUL Listed, EN 50121-4, IEC 60950-1, DIN VDE 0100-410
- Electromagnetic Compatibility: Conformance with EMC Directive 2014/30/EU
Buy the Phoenix Contact Series TRIO Power Supply: 2903156
Enhance your industrial automation setup with the Phoenix Contact TRIO power supply, offering 24 V DC output at 40 A, robust design, dynamic boost, and tool-free connection. Perfect for demanding environments, it ensures reliable power delivery with high vibration and shock resistance. Its compact DIN rail mount saves space, while its wide temperature operation from -25°C to 70°C provides versatility across applications. Obtain this high-quality power supply online for quick, secure installation and long-term dependable performance in your automation and machine building projects.
Get Phoenix Contact TRIO power supply unit 2903156 today—designed for high reliability, dynamic boost, and easy fast connection technology.
Frequently Asked Questions
Where can I buy Phoenix Contact 2903156?
You can click on the BUY or RFQ button to purchase 2903156 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2903156?
You can download the 2903156 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2903156?
Phoenix Contact
