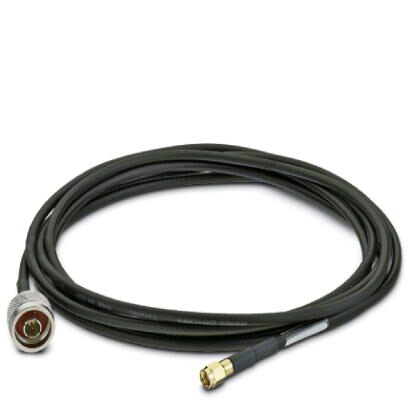

Phoenix Contact 2903266 Antenna Cable N-RSMA
The Phoenix Contact RAD-PIG-RSMA/N-3 antenna cable provides a reliable connection between devices utilizing N (male) and RSMA (male) connectors. With a length of 3 meters and an impedance of 50 ohms, this cable is ideal for applications requiring efficient signal transmission, such as wireless communication systems, antenna setups, and test equipment. The cable's robust construction and wide frequency range (up to 5 GHz) ensure consistent performance in diverse environments. It is suitable for industrial and commercial applications where reliable antenna connections are critical.
Phoenix Contact 2903266 Antenna Cable N-RSMA Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 160.0 g
- Custom tariff number: 85442000
- Country of origin: United States
- Fixed cable length: 3 m
- External diameter: 4.95 mm
- Ambient temperature (operation): -40 °C ... 85 °C
- Connection method (1): RSMA (male)
- Connection method (2): N (male)
- Cable type: 195
- Minimum bending radius: 12.70 mm
- Frequency range (1): 900 MHz
- Frequency range (2): 2.4 GHz
- Frequency range (3): 5 GHz
- Impedance: 50 Ω
- Attenuation @ 868 / 900 MHz: 1.2 dB
- Attenuation @ 2.4 GHz: 1.95 dB
- Attenuation @ 5 GHz: 2.95 dB
- eCl@ss 4.0: 27230207
- eCl@ss 4.1: 27250312
- eCl@ss 5.0: 27242208
- eCl@ss 5.1: 27061802
- eCl@ss 6.0: 27242208
- eCl@ss 7.0: 27242208
- eCl@ss 8.0: 27060310
- ETIM 3.0: EC001423
- ETIM 4.0: EC000019
- ETIM 5.0: EC001682
- UNSPSC 6.01: 30211506
- UNSPSC 7.0901: 43223108
- UNSPSC 11: 39121008
- UNSPSC 12.01: 43223108
- UNSPSC 13.2: 43223108
