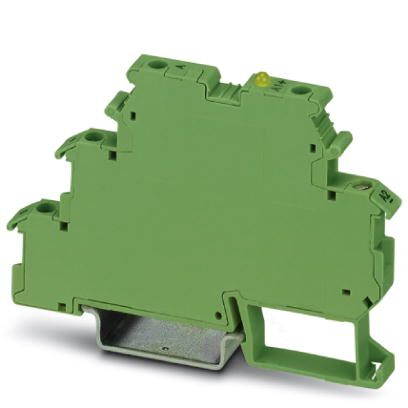

Phoenix Contact DEKOE5DC48DC100 Solid-State Relay Terminal Block
The PHOENIX CONTACT DEK-OE- 5DC/ 48DC/100 solid-state relay terminal block provides a reliable and efficient solution for switching applications. It features input voltage of 5 V DC and an output voltage range of 3-48 V DC with a limiting continuous current of 100 mA. The block offers wear-free switching, integrated output and input protective circuits, and electrical isolation up to 2.5 kVrms. It's ideal for industrial automation, control systems, and other applications requiring reliable solid-state switching. Consider using insertion bridges for optimal performance in multi-block configurations.
Phoenix Contact DEKOE5DC48DC100 Solid-State Relay Terminal Block Specifications:
- Utilization restriction: EMC: class A product, see manufacturer's declaration
- Note: Use of EB 80-DIK... bridges: Monitor for expansion due to humidity and tolerance.
- Width: 6.2 mm
- Height: 80 mm
- Depth: 56 mm
- Ambient temperature (operation): -20 °C ... 60 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Nominal input voltage UN: 5 V DC
- Input voltage range in reference to UN: 0.9 ... 1.1
- Input voltage range: 4.5 V DC ... 5.5 V DC
- Switching threshold "0" signal in reference to UN: ≤ 0.4
- Switching threshold "1" signal in reference to UN: ≥ 0.8
- Typical input current at UN: 6.5 mA
- Typical response time: 20 µs
- Typical turn-off time: 200 µs
- Operating voltage display: Yellow LED
- Type of protection (input): Reverse polarity protection
- Transmission frequency: 300 Hz
- Output voltage range: 3 V DC ... 48 V DC
- Limiting continuous current: 100 mA
- Voltage drop at max. limiting continuous current: ≤ 0.9 V
- Output circuit: 2-conductor floating, 3-conductor ground-referenced
- Type of protection (output): Reverse polarity protection
- Free-wheeling diode: Yes
- Protective circuit/component: Polarity protection diode
- Damping diode: Yes
- Output resistor: approx. 22 kΩ
- Test voltage input/output: 2.5 kV AC
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Connection name (input): Input side
- Connection method (input): Screw connection
- Stripping length (input): 8 mm
- Screw thread (input): M3
- Conductor cross section solid (input): 0.2 mm² ... 2.5 mm²
- Conductor cross section flexible (input): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (input): 24 ... 14
- Torque (input): 0.5 Nm
- Connection name (output): Output side
- Connection method (output): Screw connection
- Stripping length (output): 8 mm
- Screw thread (output): M3
- Conductor cross section solid (output): 0.2 mm² ... 2.5 mm²
- Conductor cross section flexible (output): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (output): 24 ... 14
- Torque (output): 0.5 Nm
- Standards/regulations: IEC 60664, EN 50178
- Insulation: Basic insulation
- Pollution degree: 2
- Overvoltage category: III
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally Friendly Use Period = 50
