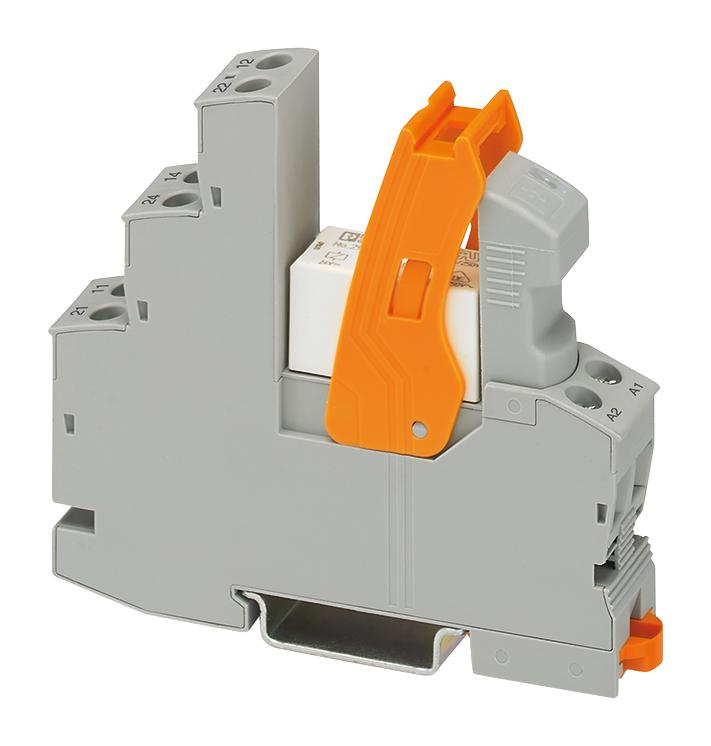

Phoenix Contact 2903346 relay module
This pre-assembled relay module features screw connections, a relay base, multi-layer contact relay, interference suppression, and a retaining bracket. Designed for automation, it includes 2 changeover contacts, operates at 24 V DC, and exhibits quick response (8 ms) and release times (10 ms). Its robust AgNi contact material, with gold plating, supports maximum switching voltages of 30 VAC and 36 VDC. Suitable for industrial controls, it has a compact 16mm width, 89mm height, 75mm depth, and withstands ambient temperatures from -40°C to 70°C for operational reliability.
Phoenix Contact 2903346 relay module Specifications:
- Dimensions: Width 16mm, Height 89mm, Depth 75mm
- Input Voltage: 24 V DC
- Maximum Switching Voltage: 30 VAC, 36 VDC
- Contact Material: AgNi, gold-plated
- Response Time: 8 ms
- Release Time: 10 ms
- Power Dissipation: 0.43 W
- Ambient Temperature Range: -40°C to 70°C
- Mounting: Any position, on NS 35/7.5 DIN rail
- Protection Class: 1P20
- Overvoltage Category: Ml
- Test Voltage Relay Winding/Contact: 4 KV, 50 Hz, 1 min
- Standards: DIN EN 50178, UL 94 V2 flammability
- Insulation: Basic insulation, 4 kV rated surge voltage
- Life Cycle: Approx. 3x 10^6 cycles
Buy the Buy Phoenix Contact Relay Module RIF-1-RSC-LDP-24DC Part Number 2903346 Online
Purchase the Phoenix Contact relay module RIF-1-RSC-LDP-24DC online today and benefit from its compact design, quick response time of just 8 ms, and durable AgNi contacts. This versatile control device features screw connections, 2 changeover contacts, and a 24 V DC input, making it ideal for industrial automation. Its robust insulation, high switching capacity, and operational temperature range from -40°C to 70°C ensure dependable performance in demanding environments. Improve your control system efficiency by ordering effortlessly from our online store.
Order your Phoenix Contact relay module RIF-1-RSC-LDP-24DC today and enhance your automation projects with reliable, high-performance control components.
Frequently Asked Questions
Where can I buy Phoenix Contact 2903346?
You can click on the BUY or RFQ button to purchase 2903346 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2903346?
You can download the 2903346 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2903346?
Phoenix Contact
