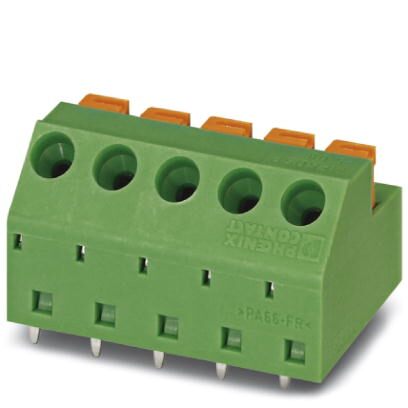

Phoenix Contact 1790649 PCB Terminal Block
The Phoenix Contact MFKDSP/ 4-5,08 terminal block is a versatile solution for PCB connections. With a nominal current of 12A and a voltage rating of 320V, it's suitable for a wide range of applications. The push-in spring connection simplifies installation, while the wave soldering capability ensures a secure and reliable connection. Its compact design and green color make it easy to identify and integrate into your PCB layout. Ideal for industrial automation, power supplies, and general electronics applications.
Phoenix Contact 1790649 PCB Terminal Block Specifications:
- Nominal current: 12 A
- Nominal voltage: 320 V
- Pitch: 5.08 mm
- Number of positions: 4
- Connection method: Push-in spring connection
- Mounting: Wave soldering
- Conductor/PCB connection direction: 45 °
- Color: green
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece: 4.68 g
- Custom tariff number: 85369010
- Country of origin: Poland
- Length: 16.2 mm
- Dimension a: 15.24 mm
- Constructional height: 13 mm
- Length of the solder pin: 3.3 mm
- Pin dimensions: 0,5 x 1 mm
- Pin spacing: 10.16 mm
- Hole diameter: 1.3 mm
- Range of articles: MFKDSP
- Insulating material group: I
- Rated surge voltage III/3: 4 kV
- Rated surge voltage III/2: 4 kV
- Rated surge voltage II/2: 4 kV
- Rated voltage III/3: 250 V
- Rated voltage III/2: 320 V
- Rated voltage II/2: 630 V
- Connection in acc. with standard: EN-VDE
- Nominal cross section: 1 mm²
- Maximum load current: 12 A (with 1.5 mm² conductor cross section)
- Insulating material: PA
- Solder pin surface: Sn
- Flammability rating according to UL 94: V0
- Stripping length: 10 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 1 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 0.75 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 0.75 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 16
