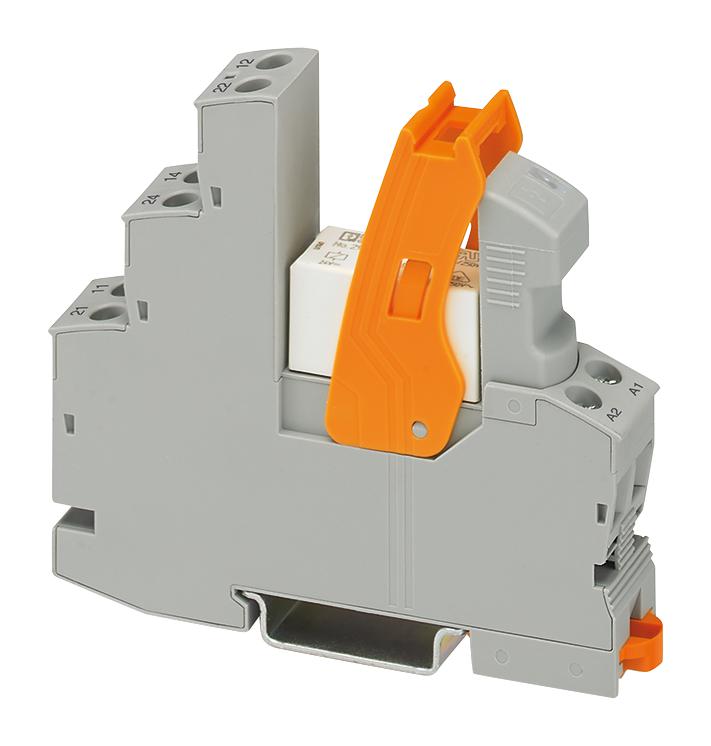

Phoenix Contact 2903358 Relay Module
The relay module is a pre-assembled device with screw connections, featuring a single changeover contact, designed for reliable switching with a 24 V DC coil. It includes a relay base, power contact relay, interference suppression module, and mounting bracket, suitable for automation and control systems. The module supports a maximum switching voltage of 250 V AC/DC, with a switching current of up to 11 A, and operates within wide ambient temperatures from -40°C to 70°C. Ideal for industrial applications demanding durable, high-current relay solutions.
Phoenix Contact 2903358 Relay Module Specifications:
- Dimensions: Width 16mm, Height 89mm, Depth 75mm
- Coil voltage: 24 V DC
- Input current: 18 mA
- Response time: 8 ms
- Release time: 10 ms
- Contact type: 1 changeover contact (1 PDT)
- Contact material: AgNi
- Maximum switching voltage: 250 V AC/DC
- Leads: Screw connection, stripping length 8mm
- Conductor cross section: Solid 0.5 mm² to 4 mm², AWG 20 to 10
- Operating temperature: -40°C to 70°C
- Storage temperature: -40°C to 85°C
- Protection rating: IP20
- Standards: DIN EN 50178, UL 94 V2 flammability rating
- Mechanical life: Approx. 30,000,000 cycles
- Certifications: DNV GL, EAC
Buy the Buy Phoenix Contact Relay Module RIF-1-RSC-LDP-24DC/1X21 Part Number 2903358 Online
Secure your industrial automation system today by ordering the Phoenix Contact relay module RIF-1-RSC-LDP-24DC/1X21 online. This high-reliability relay features a 24 V DC coil, changeover contact, and interference suppression, ensuring efficient switching of loads up to 250 V AC/DC and 11 A current capacity. Its robust design supports wide temperature ranges from -40°C to 70°C, making it perfect for demanding environments. Easy to install with screw connections, it’s an ideal choice for control panels and automation applications seeking durability and precise performance. Buy now to ensure seamless operation and long-term dependability.
Order your Phoenix Contact relay RIF-1-RSC-LDP-24DC/1X21 today and enhance your automation projects with dependable switching performance.
