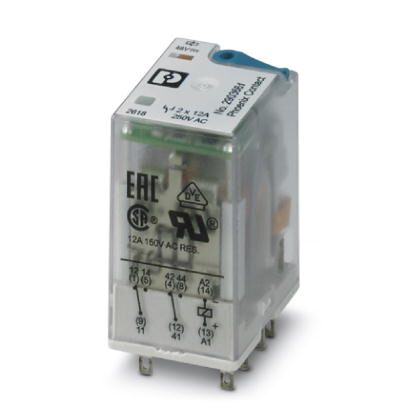

Phoenix Contact 2903661 2 PDT Industrial Relay

Phoenix Contact 2903661 2 PDT Industrial Relay Specifications:

• Packing unit: 1 pc
• Minimum order quantity: 10 pc
• Weight per Piece (excluding packing): 36.000 g
• Custom tariff number: 85364190
• Country of origin: Poland
• Width: 21.2 mm
• Height: 27.5 mm
• Depth: 35.6 mm
• Ambient temperature (operation): -40 °C ... 70 °C
• Ambient temperature (storage/transport): -40 °C ... 85 °C
• Degree of protection: RT I
• Nominal input voltage UN: 48 V DC
• Input voltage range in reference to UN: see diagram
• Typical input current at UN: 22 mA
• Typical response time: 13 ms
• Typical release time: 14 ms
• Protective circuit: Damping diode
• Status display: Yellow LED
• Power dissipation for nominal condition: 1.06 W
• Contact type: 2 PDT
• Type of switch contact: Single contact
• Contact material: AgNi
• Maximum switching voltage: 250 V AC/DC
• Minimum switching voltage: 5 V (At 24 mA)
• Min. switching current: 5 mA (at 24 V)
• Maximum inrush current: 30 A (20 ms, N/O contacts)
• Limiting continuous current: 12 A
• Interrupting rating (ohmic load) max.: 3000 VA (for 250 V AC)
• Switching capacity min.: 0.12 W
• Motor load according to UL 508: 1/2 HP, 240 V AC
• Test voltage relay winding/relay contact: 2.5 kVrms(50 Hz, 1 min.)
• Test voltage relay contact/relay contact: 2.5 kVrms(50 Hz, 1 min.)
• Test voltage PDT/PDT: 2.5 kVrms(50 Hz, 1 min.)
• Operating mode: 100% operating factor
• Mechanical service life: approx. 2x 10^7 cycles
• Service life, electrical: see diagram
• Mounting position: any
• Connection method: Plug connection
• Connection in acc. with standard: CSA
• Standards/regulations: IEC 61810
• Rated insulation voltage: 250 V AC
• Rated surge voltage: 4 kV
• Insulation: Basic insulation
• Pollution degree: 2 (Rated voltage of 400 V)
• Overvoltage category: III
• China RoHS: Environmentally Friendly Use Period = 50 years
