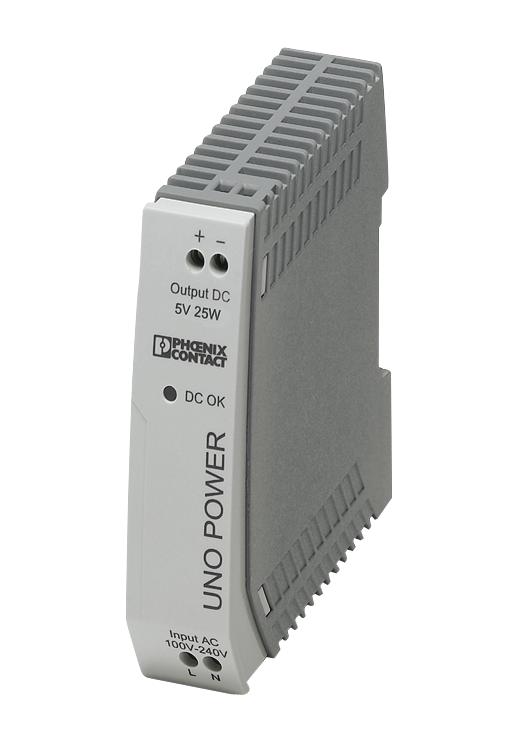

Phoenix Contact 2904374 Industrial Power Supply
This is a Phoenix Contact switching power supply with an output of 5V DC at 5A, providing 25W of power. It accepts an input voltage of 85-264VAC, operates on single-phase power, and is designed for DIN rail mounting. The unit features a plastic housing and screw terminal connections, ideal for industrial applications. It offers high efficiency over 84%, low power loss under 0.3W at no load, and a wide temperature range from -25°C to +70°C. Its compact design saves space, making it suitable for control cabinets and automation systems.
Phoenix Contact 2904374 Industrial Power Supply Specifications:
- Input Voltage Range: 85-264 VAC
- Input Frequency: 45-65 Hz
- Output Voltage: 5 V DC
- Output Current: 5 A
- Power Output: 25 W
- Efficiency: > 84%
- No-load Power Dissipation: < 0.3 W
- Operating Temperature: -25°C to 70°C
- Storage/Transport Temperature: -40°C to 85°C
- Dimensions: Width 22.5 mm, Height 90 mm, Depth 84 mm
- Mounting: Horizontal DIN rail NS 35, EN 60715
- Connections: Screw terminal, conductor cross section 0.2-2.5 mm² (AWG 24-14)
- Protection Class: II (double insulation)
- Certifications: UL Recognized, CUL Listed, CE, EAC
Buy the Buy Phoenix Contact Power Supply Unit UNO-PS/1AC/5DC/25W Part Number 2904374 Online
Purchase the Phoenix Contact UNO-PS/1AC/5DC/25W power supply online for reliable and efficient 5V DC power delivery. Its compact design fits seamlessly into control cabinets, offering high energy efficiency over 84%, low idle power consumption, and a wide operating temperature range. Perfect for industrial automation and control systems, this DIN rail-mounted power supply ensures stable voltage, reliable performance, and meets high safety standards, making it an ideal choice for your electrical and automation needs.
Buy Phoenix Contact UNO-PS/1AC/5DC/25W now and experience unmatched reliability and performance in your industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 2904374?
You can click on the BUY or RFQ button to purchase 2904374 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2904374?
You can download the 2904374 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2904374?
Phoenix Contact
