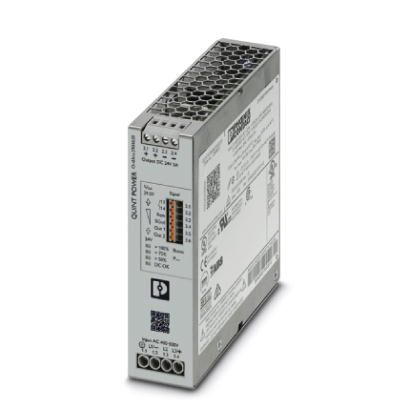

Phoenix Contact 2904620 24V DC Power Supply
The PHOENIX CONTACT QUINT4-PS/3AC/24DC/5 is a high-performance power supply designed to enhance system reliability. It features SFB (selective fuse breaking) technology, allowing parallel loads to continue operating, and a preventive function monitoring system to anticipate potential errors. The NFC interface enables individual adjustment of signaling thresholds and characteristic curves, maximizing system availability. With a wide input voltage range, international approvals, and robust construction, this power supply is suitable for a variety of industrial applications, including those requiring high immunity to noise and transient surges.
Phoenix Contact 2904620 24V DC Power Supply Specifications:
- Packing unit: 1 STK
- GTIN: 4046356985369
- Weight per Piece: 940.000 g
- Custom tariff number: 85044030
- Country of origin: Thailand
- Width: 36 mm
- Height: 130 mm
- Depth: 125 mm
- Width with alternative assembly: 122 mm
- Height with alternative assembly: 130 mm
- Depth with alternative assembly: 39 mm
- Degree of protection: IP20
- Ambient temperature (operation): -25 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Max. permissible relative humidity (operation): ≤ 95 %
- Noise immunity: EN 61000-6-1, EN 61000-6-2, EN 61000-6-5
- Maximum altitude: ≤ 5000 m
- Nominal input voltage range: 3x 400 V AC ... 500 V AC, 2x 400 V AC ... 500 V AC, ± 300 V DC
- Input voltage range: 3x 400 V AC ... 500 V AC -20 % ... +10 %, 2x 400 V AC ... 500 V AC -10 % ... +10 %, ± 300 V DC -25 % ... +30 %
- AC frequency range: 50 Hz ... 60 Hz
- Discharge current to PE: < 3.5 mA
- Current consumption: 3x 0.6 A (400 V AC), 3x 0.5 A (480 V AC), 2x 0.9 A (400 V AC), 2x 0.8 A (480 V AC), 3x 0.45 A (500 V AC), 2x 0.8 A (500 V AC)
- Inrush surge current: typ. 10 A
- Power failure bypass: ≥ 28 ms
- Choice of suitable circuit breakers: 3x 6 A
- Type of protection: Transient surge protection
- Protective circuit/component: Varistor, gas-filled surge arrester
- Nominal output voltage: 24 V DC
- Setting range of the output voltage: 24 V DC ... 29.5 V DC
- Nominal output current: 5 A
- Static Boost: 6.25 A
- Dynamic Boost: 10 A (5 s)
- Selective Fuse Breaking: 30 A (15 ms)
- Derating: > 60 °C (2.5 %/K)
- Connection in parallel: Yes
- Connection in series: Yes
- Control deviation: < 0.5 %, < 2 %
- Residual ripple: < 30 mVPP
- Output power: 120 W
- Typical response time: 300 ms
- Maximum power dissipation in no-load condition: < 3 W
- Efficiency: typ. 89 %
- Insulation voltage input/output: 4 kV AC
- Protection class: I
- MTBF: > 1560000 h
- Mounting position: horizontal DIN rail NS 35
- Conductor cross section solid min (input): 0.2 mm²
- Conductor cross section solid max (input): 6 mm²
- Conductor cross section flexible min (input): 0.2 mm²
- Conductor cross section flexible max (input): 4 mm²
- Conductor cross section AWG min (input): 30
- Conductor cross section AWG max (input): 10
- Stripping length (input): 8 mm
- Conductor cross section solid min (output): 0.2 mm²
- Conductor cross section solid max (output): 2.5 mm²
- Conductor cross section flexible min (output): 0.2 mm²
- Conductor cross section flexible max (output): 2.5 mm²
- Conductor cross section AWG min (output): 30
- Conductor cross section AWG max (output): 12
- Stripping length (output): 6.5 mm
