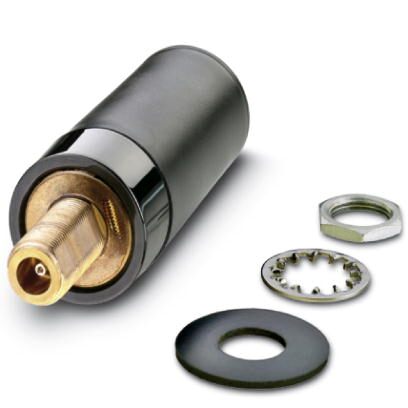

Phoenix Contact 2904802 Omnidirectional Antenna
The PHOENIX CONTACT RAD-900-ANT-OMNI-2-N is a robust omnidirectional antenna engineered for reliable wireless communication in diverse environments. Operating within the 868 MHz to 960 MHz frequency range, this antenna delivers a gain of 2.15 dBi, ensuring effective signal transmission and reception. Its IP66 degree of protection safeguards against dust and water ingress, making it suitable for outdoor installations. The antenna’s Xenoy 5720U-7014 housing provides durability, while the N (female) connector facilitates easy integration with compatible systems. Designed for control cabinet mounting with optional wall mounting capabilities, this antenna is an excellent choice for freely mobile applications and multipoint or mesh network connections.
Phoenix Contact 2904802 Omnidirectional Antenna Specifications:
- Frequency Range: 868 MHz ... 960 MHz
- Gain: 2.15 dBi
- Horizontal Beamwidth: 360 °
- Vertical Beamwidth: 50 °
- Polarization: Linear vertical
- Impedance: 50 Ω
- Connection Method: Type N (female)
- Material: Xenoy 5720U-7014 (Antenna housing)
- Mounting Type: Control cabinet
- Degree of Protection: IP66
- Ambient Temperature (Operation): -40 °C ... 70 °C
- Ambient Temperature (Storage/Transport): -40 °C ... 70 °C
- Height: 84 mm
- Diameter: 36 mm
- With Connecting Cable: No
- Environmentally Friendly Use Period: unlimited = EFUP-e
- No Hazardous Substances: Above threshold values
