Phoenix Contact PTFIX66X25GN Distribution Block
The PTFIX distribution block features a green, push-in connection design for quick, tool-free conductor installation. It supports a 500 V rated voltage, 24 A maximum current, and accommodates 7 connections, with a cross section of 0.14 mm² to 4 mm². Its compact dimensions include a width of 25.2 mm, height of 21.2 mm, and length of 28.2 mm, suitable for DIN rail mounting, diode mounting, or adhesive use. The insulation material is PA rated up to 130°C, with excellent fire and shock protection validated in various tests, ensuring reliable performance in industrial applications.
Phoenix Contact PTFIX66X25GN Distribution Block Specifications:
- Color: green
- Insulating Material: PA, rated up to 130°C
- Rated Voltage: 500 V
- Maximum Load Current: 24 A
- Number of Connections: 7
- Cross Section Range: 0.14 mm² to 4 mm²
- Connection Method: Push-in connection
- Dimensions: Width 25.2 mm, Height 21.2 mm, Length 28.2 mm
- Flammability Rating: UL 94 VO
- Fire Protection Standards: DIN EN 45545-2 R22, R23, R24, R26
- Tested and complies with IEC 60998-2-2 for conductor cross section
- Environmental Compliance: China RoHS
- Surge Voltage: 6 kV
- Current Ratings: 50 A (other configurations)
- Temperature Index: 130°C

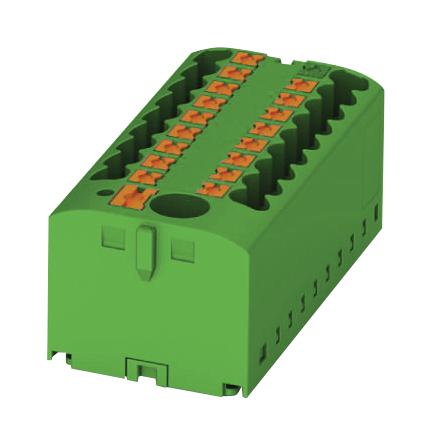

Buy the Buy Phoenix Contact Distribution Block PTFIX 6/6X2,5 GN Part Number PTFIX66X25GN Online
Discover the Phoenix Contact distribution block, designed for fast, tool-free wiring with push-in connection technology. Its compact size and DIN rail mounting make it ideal for automated systems and industrial control panels. Rated at 500 V and 24 A, it features a robust PA insulation rated up to 130°C, ensuring safety and durability in demanding environments. UL recognized with fire and shock protection certifications, this distribution block simplifies wiring tasks, saves space, and enhances system reliability—order online today for fast delivery and technical support.
Get Phoenix Contact PTFIX66X25GN today—built for industrial reliability with quick push-in connections and versatile mounting options.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX66X25GN?
You can click on the BUY or RFQ button to purchase PTFIX66X25GN from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX66X25GN?
You can download the PTFIX66X25GN datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX66X25GN?
Phoenix Contact
