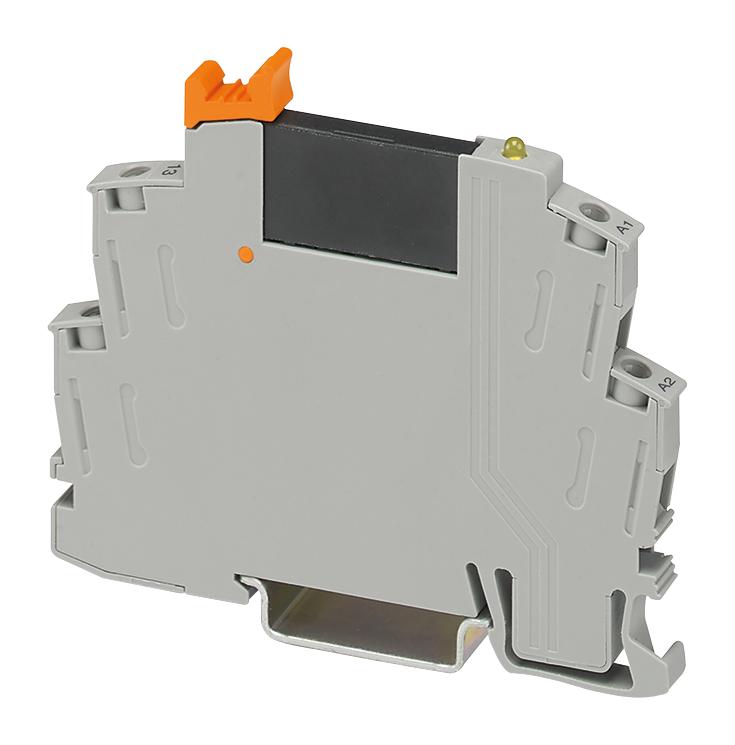

Phoenix Contact 2905657 Solid-state relay
The solid-state relay module is a compact, pre-assembled device featuring screw connections, suitable for switching 3 - 33 V DC at 3 A. It includes a relay base with ejector and a miniature solid-state relay with input voltage of 24 V DC. Designed for industrial automation, it supports high-speed switching with high reliability, noise immunity, and vibration resistance. Its IP20 protection and any mounting position make it versatile for control panels and distribution boards, ensuring safe, efficient operation in demanding environments.
Phoenix Contact 2905657 Solid-state relay Specifications:
- Input Voltage: 24 V DC
- Output Voltage Range: 3 - 33 V DC
- Output Current: 3 A
- Dimensions: Width 6.2 mm, Height 84 mm, Depth 68 mm
- Connection Method: Screw connection
- Conductor Cross Section Solid: 0.5 mm² ... 4 mm²
- Conductor Cross Section Stranded: 0.5 mm² ... 2.5 mm²
- AWG: 20 ... 12 (solid), 20 ... 14 (stranded)
- Stripping Length: 7 mm
- Torque: 0.5 Nm ... 0.6 Nm
- Operating Mode: 100% operating factor
- Degree of Protection: IP20
- Mounting Position: Any
- Standards: DIN EN 50178
- Rated Insulation Voltage: 260 VAC
- Rated Surge Voltage: 4 kV
- Insulation: Basic insulation
- Degree of Pollution: 2
- Flammability Rating: UL 94 V2
Buy the Buy Phoenix Contact Solid-state Relay Module RIF-O-OSC-24DC/24DC/2 Online
Experience reliable switching with the Phoenix Contact solid-state relay module. Designed for seamless integration, it handles 24 V DC input and switches 3 - 33 V DC at 3 A. Its compact dimensions and screw connections facilitate easy installation in control panels and automation systems. With IP20 protection and high surge voltage tolerance, it ensures durability and stable operation in demanding environments. Perfect for industrial applications where quick, noise-immune switching and long-term reliability are critical.
Get Phoenix Contact RIF-O-OSC-24DC/24DC/2 today—built for industrial automation and robust switching performance.
