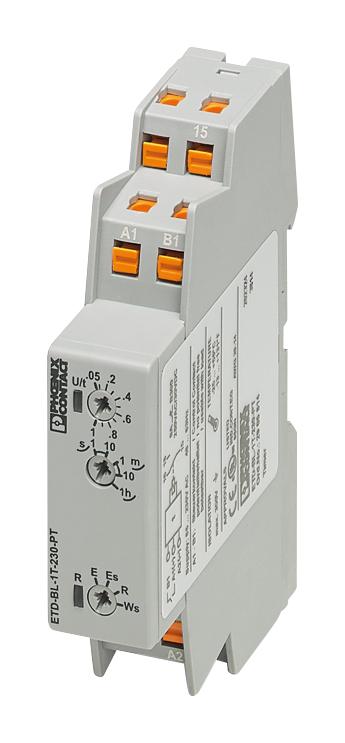

Phoenix Contact 2905814 Timer Relay
The ETD-BL-1T-230-PT timer relay by Phoenix Contact offers four functions with an adjustable time range from 50 milliseconds to 1 hour. It features push-in connection terminals, a compact design measuring 17.5 mm in width, 88 mm in height, and 65.5 mm in depth. With a control voltage range of 24V DC to 240V DC, it includes status LEDs for power and relay activity, and accommodates multiple mounting positions. This relay meets international standards, including CE and UL, making it suitable for automation, process control, and power engineering applications requiring reliable timing functions.
Phoenix Contact 2905814 Timer Relay Specifications:
- Dimensions: Width 17.5mm, Height 88mm, Depth 65.5mm
- Control voltage: 24V DC to 240V DC (-20% to +25%)
- Time setting range: 50 ms to 1 hour
- Function options: Switch-on delay, release delay, with control contact, single shot
- Contact type: 1 floating PDT
- Maximum switching voltage: 250 V AC
- Interrupting rating: 1250 VA at 5 A/ 250 V AC
- Output fuse: 5A fast-blow
- Ambient temperature: Operating -25°C to 55°C, Storage -25°C to 70°C
- Permissible humidity: 15% to 85%
- Ratings conform to EN 61000-6-2, EN 61000-6-3
- Mounting: DIN rail NS 35 according to EN 60715
- Standards: CE, UL, cUL Listed, RoHS compliant
- Color: Gray
- Mechanical life: 150 million cycles
Buy the Phoenix Contact ETD-BL-1T-230-PT – Reliable Timer Relay for Industrial Applications
Order the Phoenix Contact ETD-BL-1T-230-PT timer relay online today and ensure precise control in your automation systems. This compact relay offers four versatile functions, an adjustable time range from 50 milliseconds to 1 hour, and push-in connection terminals for easy installation. Its robust design supports multiple mounting positions and meets strict international standards, including CE and UL. Perfect for automation, process control, and power engineering, this relay guarantees durability, reliable operation, and easy integration into demanding industrial environments.
Buy Phoenix Contact ETD-BL-1T-230-PT timer relay now and experience unmatched reliability and performance in automation and process control.
