Phoenix Contact 2906233 Current Measurement Device

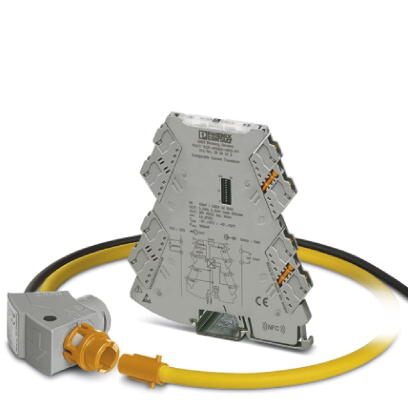

This signal conditioner set includes a 4-way device with screw connection technology and a 600 mm Rogowski coil measuring 190 mm in diameter, ideal for accurate AC current measurement on busbars and power lines. The setup supports measurement ranges from 100 A to 4000 A, configurable via DIP switches. It operates on a 24 VDC supply with a voltage range of 9.6V to 30V. The conditioner outputs 8 standard signals and features a switching output, making it suitable for industrial current monitoring and automation tasks.
Phoenix Contact 2906233 Current Measurement Device Specifications:
- Supply Voltage: 24 VDC (range 9.6 V to 30 V DC)
- Measuring coil length: 600 mm
- Coil diameter: 190 mm
- Measurement Range: 100 A, 250 A, 400 A, 630 A, 1000 A, 1500 A, 2000 A, 4000 A (configurable via DIP switches)
- Frequency Range: 40 Hz to 20,000 Hz
- Output signals: 8 standard signals
- Switching output: 1
- Connection technology: Screw connection
- Part Number: 2906233
Buy the Phoenix Contact 2906233 – Reliable Signal Conditioner for Industrial Current Measurement
Acquire the Phoenix Contact current measurement device online today to ensure precise AC current monitoring on busbars and power lines. Featuring a 600 mm Rogowski coil and a 4-way signal conditioner, this setup provides configurable measurement ranges from 100 A to 4000 A. It includes eight standard output signals and one switching output, all housed with screw connection technology for easy integration. Ideal for industrial automation, energy management, and electrical maintenance, this reliable device enhances measurement accuracy and operational safety.
Buy Phoenix Contact 2906233 now and experience unmatched reliability and performance in current measurement for industrial applications.
Frequently Asked Questions
Where can I buy Phoenix Contact 2906233?
You can click on the BUY or RFQ button to purchase 2906233 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2906233?
You can download the 2906233 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2906233?
Phoenix Contact
