Phoenix Contact 2906235 Current Transformer
The current transformer PACT RCP-4000A-UIRO-PT-D140 by Phoenix Contact is a robust measurement device designed for AC current measurement on busbars and power lines. It features a Rogowski coil with 450 mm length and 8.3 mm diameter, and a signal conditioner that outputs 8 standard signals plus a switching output. The device operates within a wide temperature range, has IP67 protection for the coil, and supports various current measurement ranges up to 4000 A. Its compact dimensions and high accuracy make it ideal for professional electrical systems and power monitoring applications, ensuring reliable data collection and safety compliance.
Phoenix Contact 2906235 Current Transformer Specifications:
- Dimensions: Width 6.2mm, Height 110.5mm, Depth 120.5mm
- Measuring coil length: 450mm, Diameter: 8.3mm +0.2mm
- Housing material: PC, Insulation: double insulation
- Rated insulation voltage: 1000 V AC (rms CAT III), 600 V AC (rms CAT IV)
- Test voltage: 10.45 kV (DC / 1 min)
- Range of measured currents: 100 A to 4000 A
- Frequency range: 16 Hz to 1000 Hz
- Measuring transducer supply: 24VDC, range 9.6V to 30VDC, Power < 1 W
- Measuring transducer input: 100 mV at 1000 A, Linearity error: 0.1%
- Output signals: 0-20 mA, 4-20 mA, 0-10 mA, 2-10 mA, 0-21 mA, 0-10 V, 2-10 V, 0-5 V, 1-5 V, 0-10.5 V
- Connection: Push-in, 10 mm stripping, Conductor cross section 0.2-2.5 mm² (solid/flexible), AWG 6-12
- Protection: IP67 for coil, IP20 for transducer, Overvoltage category CAT III, Pollution degree 2
- Compliance: UL 61010, UL 508 Listed, IEC 61010-1, IEC 61010-2-032, CE certified
- Ambient temperature: -30°C to 80°C (coil), -40°C to 85°C (transducer), Storage: -40°C to 80°C
- Maximum altitude: > 4000 m, Humidity: 5% to 95%, Noise immunity: EN 61000-6-2

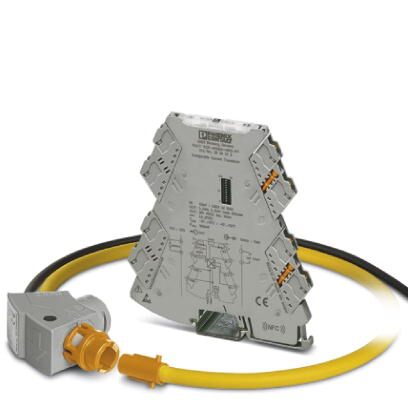

Buy the Buy Phoenix Contact Current Transformer Part Number 2906235 Online
Experience reliable AC current measurement with the Phoenix Contact Current Transformer, model PACT RCP-4000A-UIRO-PT-D140. Designed for industrial power systems, it features a 450 mm Rogowski coil, high accuracy, and broad current range up to 4000 A. Its double-insulated housing and IP67 protection for the coil ensure durability in challenging environments. Easy to install with push-in connections, it complies with UL and IEC standards for safety and electromagnetic compatibility. Perfect for power monitoring in automation, energy management, and electrical systems, ensuring safety and precision in your projects.
Order your Phoenix Contact PACT RCP-4000A-UIRO-PT-D140 today and ensure precise AC current measurement with high reliability and robust design.
