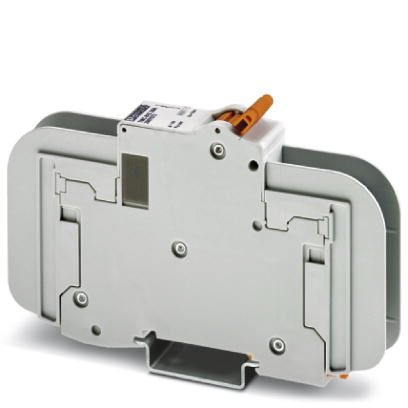

Phoenix Contact 2907559 Thermomagnetic Device Circuit Breaker
The Phoenix Contact TMC 81C 02A thermomagnetic device circuit breaker provides reliable overcurrent protection in a compact design. It's mounted on a 35mm DIN rail and offers a 2A rated current with a 10kA short-circuit switching capacity. This circuit breaker is ideal for protecting sensitive electronic equipment and circuits in industrial automation, power distribution, and control panel applications. Its robust construction and thermomagnetic trip mechanism ensure dependable performance under various operating conditions, from -35°C to 70°C.
Phoenix Contact 2907559 Thermomagnetic Device Circuit Breaker Specifications:
- Mounting type: DIN rail: 35 mm
- Color: gray
- Number of positions: 1
- Operating voltage: 277 V AC / 60 V DC
- Rated current IN: 2 A
- Rated short-circuit switching capacity Icn: 10 kA (IC)
- Height: 116 mm
- Width: 17.6 mm
- Depth: 65.7 mm
- Ambient temperature (operation): -35 °C ... 70 °C
- Packing unit: 1 STK
- Weight per Piece (excluding packing): 150.000 g
- Country of origin: China
- UL Listed: FILE E 320373
- cUL Listed: FILE E 320373
- cULus Listed: None
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141116
- eCl@ss 6.0: 27141116
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- eCl@ss 9.0: 27141116
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- ETIM 6.0: EC000899
- UNSPSC 6.01: 30211812
- UNSPSC 7.0901: 39121411
- UNSPSC 11: 39121411
- UNSPSC 12.01: 39121411
- UNSPSC 13.2: 39121620
Buy the 2907559 PHOENIX CONTACT Thermomagnetic Device Circuit Breaker | myMectronic
Purchase the Phoenix Contact 2907559 Thermomagnetic Device Circuit Breaker securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 2907559?
You can click on the BUY or RFQ button to purchase 2907559 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2907559?
You can download the 2907559 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2907559?
Phoenix Contact
