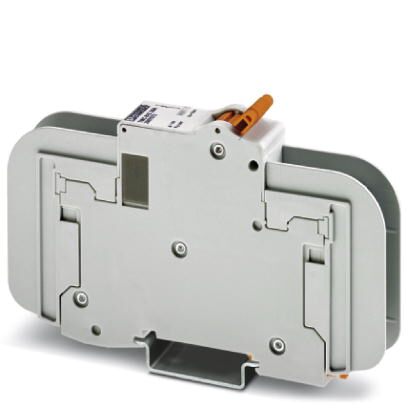

Phoenix Contact 2907578 Thermomagnetic Device Circuit Breaker
The Phoenix Contact TMC 81C 40A thermomagnetic device circuit breaker offers reliable overcurrent protection in a compact design. Designed for DIN rail mounting on 35mm rails, this 1-pole circuit breaker features a 40A rated current and a 10kA short-circuit switching capacity, making it suitable for a wide range of industrial applications. It is ideal for protecting sensitive electronic equipment and ensuring the safety of electrical systems. The device's robust construction and reliable performance make it a dependable choice for demanding environments.
Phoenix Contact 2907578 Thermomagnetic Device Circuit Breaker Specifications:
- Mounting type: DIN rail: 35 mm
- Color: gray
- Number of positions: 1
- Operating voltage: 120 V AC, 60 V DC
- Rated current IN: 40 A
- Rated short-circuit switching capacity Icn: 10 kA (IC)
- Height: 116 mm
- Width: 17.6 mm
- Depth: 65.7 mm
- Ambient temperature (operation): -35 °C ... 70 °C
- Standards and Regulations: UL 489 IEC 60947-2
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- eCl@ss 9.0: 27141116
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- ETIM 6.0: EC000899
- ETIM 7.0: EC000899
- UNSPSC 6.01: 30211812
- UNSPSC 7.0901: 39121411
- UNSPSC 11: 39121411
- UNSPSC 12.01: 39121411
- UNSPSC 13.2: 39121620
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 150.000 g
- Country of origin: China
