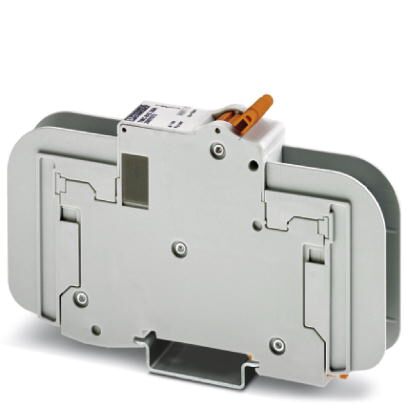

Phoenix Contact 2907628 Thermomagnetic Device Circuit Breaker
The Phoenix Contact TMC 81D 03A thermomagnetic device circuit breaker provides overcurrent protection in industrial applications. Designed for DIN rail mounting (35mm), it offers a compact solution with a width of 17.6mm. With a rated current of 3A and a short-circuit switching capacity of 10kA, it effectively protects circuits from overload and short circuits. The device is UL Listed, ensuring compliance with safety standards, and RoHS compliant, indicating adherence to environmental regulations. It is ideal for use in control cabinets and distribution boards where reliable overcurrent protection is required.
Phoenix Contact 2907628 Thermomagnetic Device Circuit Breaker Specifications:
- Mounting type: DIN rail: 35 mm
- Color: gray
- Number of positions: 1
- Operating voltage: 120 V AC (277 V AC) / 60 V DC
- Rated current IN: 3 A
- Rated short-circuit switching capacity Icn: 10 kA (IC)
- Height: 116 mm
- Width: 17.6 mm
- Depth: 65.7 mm
- Ambient temperature (operation): -35 °C ... 70 °C
- Standards and Regulations: UL 489 IEC 60947-2
- Packing unit: 1 pc
- GTIN: 4055626215181
- Weight per Piece (excluding packing): 150.000 g
- Country of origin: China
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- eCl@ss 9.0: 27141116
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- ETIM 6.0: EC000899
- ETIM 7.0: EC000899
- UNSPSC 6.01: 30211812
- UNSPSC 7.0901: 39121411
- UNSPSC 11: 39121411
- UNSPSC 12.01: 39121411
- UNSPSC 13.2: 39121620
- UL Listed: FILE E 320373
- cUL Listed: FILE E 320373
- cULus Listed: FILE E 320373
