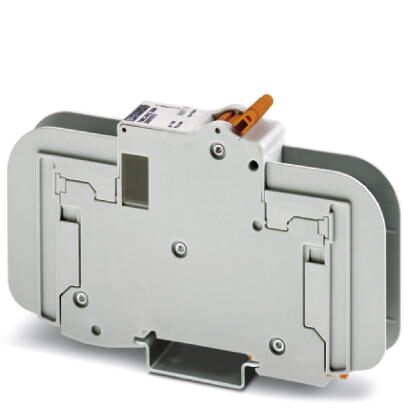

Phoenix Contact 2907641 Thermomagnetic Device Circuit Breaker
The Phoenix Contact TMC 81D 25A thermomagnetic device circuit breaker is a crucial component for electrical distribution systems, offering reliable overcurrent protection in industrial environments. Designed for DIN rail mounting on 35mm rails, this circuit breaker features a compact design with a width of 17.6mm. It operates with a rated current of 25A and boasts a significant short-circuit switching capacity of 10kA, ensuring effective protection against fault currents. The device is suitable for a wide range of applications, including industrial control panels, power distribution units, and machinery, where reliable circuit protection is paramount. Its robust construction and adherence to UL 489 and IEC 60947-2 standards guarantee consistent performance and safety.
Phoenix Contact 2907641 Thermomagnetic Device Circuit Breaker Specifications:
- Mounting type: DIN rail: 35 mm
- Color: gray
- Number of positions: 1
- Operating voltage: 120 V AC (277 V AC) / 60 V DC
- Rated current IN: 25 A
- Rated short-circuit switching capacity Icn: 10 kA (IC)
- Height: 116 mm
- Width: 17.6 mm
- Depth: 65.7 mm
- Ambient temperature (operation): -35 °C ... 70 °C
- Standards and Regulations: UL 489 IEC 60947-2
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- eCl@ss 9.0: 27141116
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- ETIM 6.0: EC000899
- ETIM 7.0: EC000899
- UNSPSC 6.01: 30211812
- UNSPSC 7.0901: 39121411
- UNSPSC 11: 39121411
- UNSPSC 12.01: 39121411
- UNSPSC 13.2: 39121620
- UL Listed: FILE E 320373
- cUL Listed: FILE E 320373
- cULus Listed: FILE E 320373
