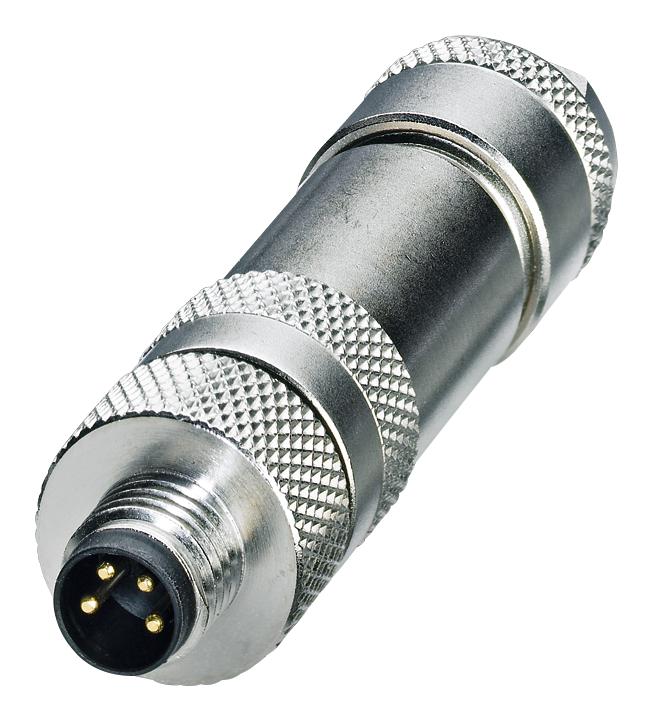

Phoenix Contact 1542897 4-Pin Shielded M8 Connector
The SACC-M 8MS-4CON-M-0,34-SH is a 4-position, shielded M8 connector designed for reliable signal transmission in industrial applications. Featuring a straight plug with A-coding and screw connection technology, it offers high protection with IP67 rating. The connector's nickel-plated brass knurled body ensures durability, while its compliance with IEC 61076-2-104 standards guarantees safety and quality. Suitable for external cable diameters of 3.5 to 5.5 mm, it provides robust, EMI-shielded connections for automated systems and industrial sensor wiring.
Phoenix Contact 1542897 4-Pin Shielded M8 Connector Specifications:
- Number of positions: 4
- Rated current at 40°C: 4A
- Rated voltage: 30V
- Insulation resistance: > 100 MQ
- Degree of protection: IP67
- External cable diameter: 3.5 mm ... 5.5 mm
- Stripping length of sheath: 12 mm +1 mm or 18 mm +1 mm depending on shield diameter
- Conductor cross section: 0.14 mm² ... 0.5 mm²
- Conductor AWG: 26 ... 20
- Tightening torque: 0.2 Nm (knurl), 0.3-0.4 Nm (pressure screw for 3-4mm diameter), 0.8-1 Nm (pressure screw for 4-8mm diameter)
- Material: Nickel-plated brass, PA, NBR
- Contact material: CuZn with Au surface
- Standards: IEC 61076-2-104, UL, cUL Recognized
- Ambient temperature: -40°C to 85°C
Buy the Buy Phoenix Contact SACC-M 8MS-4CON-M-0,34-SH Part Number 1542897 Online
Purchase the Phoenix Contact SACC-M 8MS-4CON-M-0,34-SH connector online today for reliable, IP67-rated signal connections in industrial environments. This rugged, 4-pin shielded M8 connector features screw termination technology, ensuring secure, dependable connections for sensor wiring and automated systems. Its durable nickel-plated brass body withstands harsh conditions, while the shield provides EMI protection. Suitable for external cable diameters of 3.5 to 5.5 mm, it complies with IEC 61076-2-104 standards, offering long-lasting performance for demanding industrial applications. Order now for swift delivery and optimized system performance.
Get Phoenix Contact SACC-M 8MS-4CON-M-0,34-SH today—designed for robust industrial signal transmission and high protection in automated systems.
Frequently Asked Questions
Where can I buy Phoenix Contact 1542897?
You can click on the BUY or RFQ button to purchase 1542897 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1542897?
You can download the 1542897 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1542897?
Phoenix Contact
