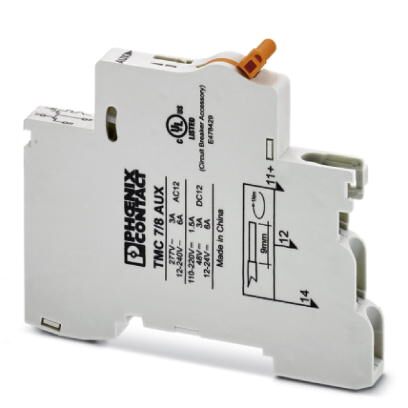

Phoenix Contact 2908219 Thermomagnetic Device Circuit Breaker
The Phoenix Contact TMC 7/8 AUX thermomagnetic device circuit breaker provides overcurrent protection in a compact and versatile design. It is designed to snap onto the side of a circuit breaker, offering a convenient and space-saving solution for industrial applications. With a wide operating voltage range (120-277V AC and 24-130V DC) and various rated current options, this circuit breaker is suitable for protecting sensitive electronic equipment and circuits in diverse industrial environments. Its robust construction and reliable performance ensure long-lasting protection and operational safety.
Phoenix Contact 2908219 Thermomagnetic Device Circuit Breaker Specifications:
- Number of positions: 1
- Mounting type: Snaps on to side of circuit breaker
- Color: gray
- Operating voltage: 120 V AC ... 277 V AC, 24 V DC ... 125 V DC
- Rated current IN: 6 A (12 ... 240 V AC), 3 A (277 V AC), 6 A (12 ... 24 V DC), 2 A (48 V DC), 1 A (130 V DC)
- Height: 85.8 mm
- Width: 9 mm
- Depth: 65.7 mm
- Ambient temperature (operation): -35 °C ... 70 °C
- Conductor cross section solid min.: 1 mm²
- Conductor cross section solid max.: 35 mm²
- Conductor cross section flexible min.: 1 mm²
- Conductor cross section flexible max.: 35 mm²
- Conductor cross section AWG min.: 18
- Conductor cross section AWG max.: 2
- Connection method: Screw
- Tightening torque max: 1 Nm
- eCl@ss 5.1: 27379201
- eCl@ss 8.0: 27130806
- eCl@ss 9.0: 27130806
- ETIM 5.0: EC000942
- Packing unit: 1 STK
- Weight per Piece (excluding packing): 150.000 g
- Custom tariff number: 85362010
- Country of origin: China
- UL Listed: FILE E 478429
- cUL Listed: FILE E 478429
