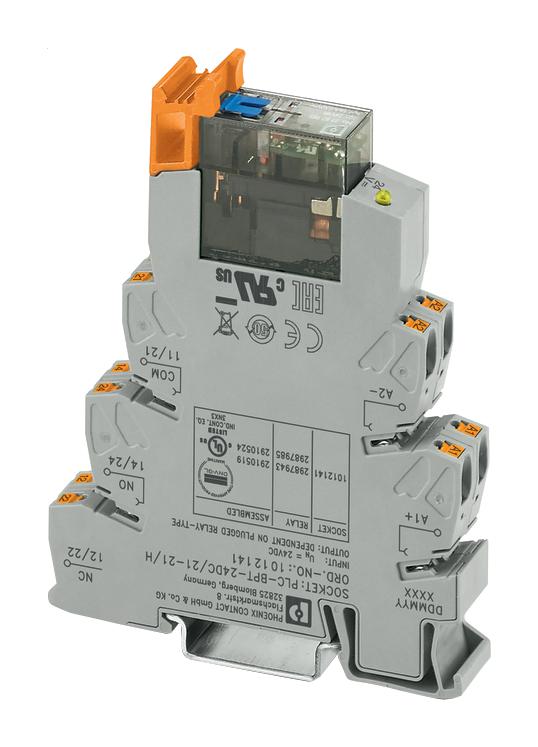

Phoenix Contact 2910524 Relay Module
The PLC-RPT-24DC/21-21AU/MS is a versatile relay module designed for industrial automation, featuring a 2PDT contact configuration, manual operation, integrated status LED, and a freewheeling diode. It operates at 24V DC, with push-in connection terminals for simple wiring, and supports a wide range of ambient and electrical conditions. Suitable for DIN rail mounting, this module is UL and cUL recognized, compliant with industrial standards, and ideal for controlling machinery and automation processes efficiently and reliably.
Phoenix Contact 2910524 Relay Module Specifications:
- Width 14mm, Height 80mm, Depth 104mm
- Ambient temperature (operation): -20°C to 60°C
- Input voltage: 24V DC, Typical input current: 18mA
- Response time: 10 ms, Release time: 10 ms
- Contact type: 2PDT, Contact material: AgNi + Au
- Maximum switching voltage: 36 VDC / 30 VAC, Min. switching voltage: 12V (1mA)
- Maximum continuous current: 50 mA, Inrush current: 50 mA
- Test voltage relay winding/contact: 4 kV AC, contact/contact: 2.5 kV AC
- Connection method: Push-in, Stripping length: 8mm
- Operating mode: 100% duty cycle, Degree of protection: RT Il (Relay)
- Standards: EN 50178, UL 508 recognized, cUL 508 recognized, Compliance with IEC 60947
- Materials: Steel, Copper, Aluminum depending on rail type, with galvanization options
- Environmental conditions: Storage/transport -20°C to 85°C
Buy the Phoenix Contact Series PLC-RPT Relay Module: 2910524
Enhance your automation system with the Phoenix Contact PLC-RPT-24DC/21-21AU/MS relay module. Featuring a robust 2PDT contact, 24V DC operation, push-in connection terminals, and compliance with UL and IEC standards, this relay module is ideal for industrial environments. Its compact design, reliable switching capacity, and integrated status LED make it essential for controlling machinery efficiently. Order online today and benefit from fast delivery, dedicated support, and seamless integration into your automation setup.
Buy Phoenix Contact PLC-RPT-24DC/21-21AU/MS relay module now and experience unmatched reliability and performance for industrial automation.
