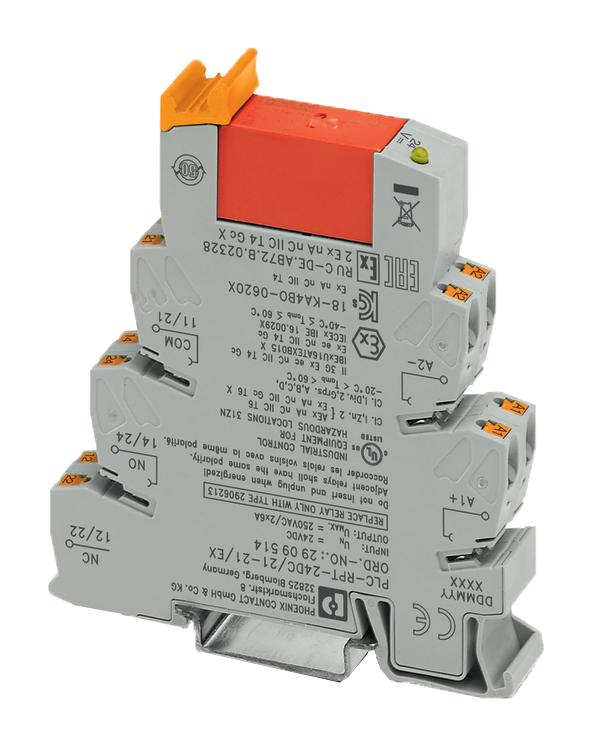

Phoenix Contact 2909514 Industrial Control Relay
The PLC-RPT- 24DC/21-21/EX relay module is a DIN rail-mounted device suitable for industrial automation, with 2 changeover contacts and 24 V DC input. It features ATEX and IECEx certifications for Zone 2, Div. 2 environments, and offers reliable switching capacity at up to 250 V AC/DC. The module includes push-in connections for ease of wiring, protected with reverse polarity and damping diodes, and supports a broad temperature range. It provides high lifetime cycles and adheres to strict safety standards, making it ideal for hazardous area control applications.
Phoenix Contact 2909514 Industrial Control Relay Specifications:
- Dimensions: Width 14mm, Height 80mm, Depth 94mm
- Input Voltage: 24 V DC
- Input Current: 18 mA typical
- Response Time: 8 ms
- Release Time: 10 ms
- Contact Type: 2PDT, Single contact, AgNi material
- Switching Voltage: Max. 250 V AC/DC
- Inrush Current: 15 A (300 ms)
- Continuous Current: 6 A
- Interrupting Rating: Up to 1500 VA (at 250 V AC)
- Test Voltage: 4 kV AC relay winding/contact, 2.5 kV AC PDT
- Operating Temperature: -40°C to 60°C (ATEX/IECEx)
- Certifications: ATEX, IECEx, UL, cUL, EAC, RoHS
Buy the Phoenix Contact PLC-RPT- 24DC/21-21/EX – Reliable Industrial Relay Module
Purchase the Phoenix Contact PLC-RPT- 24DC/21-21/EX relay module online today and ensure reliable, safe operation in hazardous zones. This robust DIN rail device offers two changeover contacts, supporting 24 V DC input, with certifications including ATEX and IECEx for Zone 2 environments. Its quick push-in connection, high switching capacity, and long mechanical life make it ideal for controlling machinery in demanding industrial settings. Secure your automation system with this explosion-proof relay module and benefit from quick installation and proven safety standards.
Order your Phoenix Contact PLC-RPT- 24DC/21-21/EX relay module today and enhance industrial automation with dependable explosion-proof relays designed for hazardous environments.
