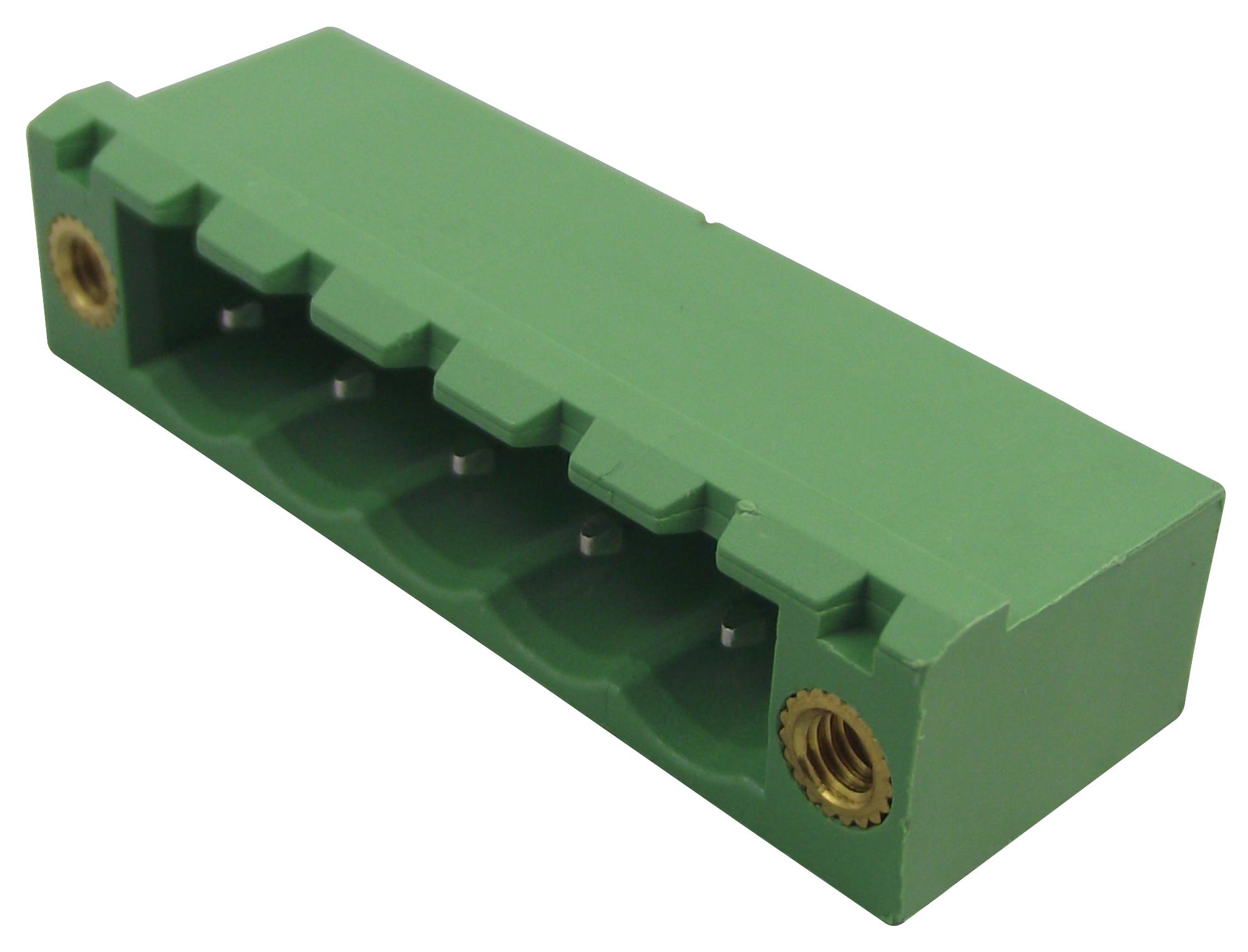

Phoenix Contact MSTBV255GF508 PCB Base Strip
The base strip MSTBV 2.5/5-GF-5.08 is a compact, green-colored connector designed for reliable PCB connections in industrial applications. It features five positions with a pitch of 5.08 mm, a nominal current of 12 A, and a rated voltage of 320 V. Made from durable PBT insulating material, it offers excellent chemical and heat resistance. The terminal is suitable for wave soldering, with precise dimensions including a length of 8.6 mm, a width of 35.56 mm, and a constructional height of 12 mm, ensuring robust and secure connections.
Phoenix Contact MSTBV255GF508 PCB Base Strip Specifications:
- Number of positions: 5
- Pitch: 5.08 mm
- Rated current: 12 A
- Rated voltage: 320 V
- Material: PBT insulating material
- Color: Green
- Dimensions: Length 8.6 mm, Width 35.56 mm, Height 12 mm
- Solder pin length: 3.9 mm
- Hole diameter: 1.4 mm
- Constructional height: 12 mm
- Ambient temperature range: -40°C to +105°C
- Flammability rating: UL 94 V-0
- Compliance: EN-VDE, CSA, UL Recognized
- Rated surge voltage: 4 kV
Buy the Phoenix Contact MSTBV255GF508 – Reliable PCB Base Strip for Industrial Applications
Order the Phoenix Contact MSTBV 2.5/5-GF-5.08 base strip online today to ensure secure, durable, and efficient PCB connections. Designed for industrial environments, this connector features five positions with a pitch of 5.08 mm, rated for 12 A and 320 V. Made from high-quality PBT material, it withstands heat and chemicals while offering easy wave soldering compatibility. Perfect for compact PCB wiring, its precise dimensions guarantee a reliable fit, making it an essential component for manufacturing and automation systems.
Buy Phoenix Contact MSTBV255GF508 now and experience unmatched reliability and performance in PCB connections for industrial applications.
Frequently Asked Questions
Where can I buy Phoenix Contact MSTBV255GF508?
You can click on the BUY or RFQ button to purchase MSTBV255GF508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part MSTBV255GF508?
You can download the MSTBV255GF508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of MSTBV255GF508?
Phoenix Contact
