Phoenix Contact 2909519 Relay Module

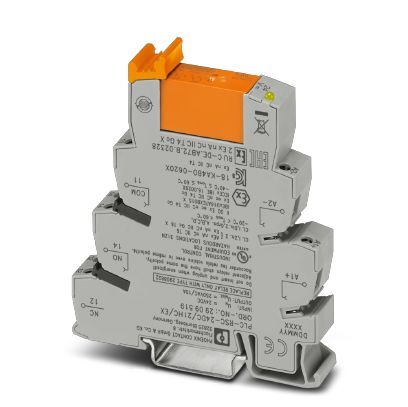

This PLC interface module features a DIN-rail-mountable basic terminal block with a 14 mm width and screw connection. It includes a plug-in relay rated for 10 A power contact, equipped with one changeover contact, and operates with a 24 V DC input voltage. The device is approved for use in hazardous environments according to ATEX and IECEx standards (Zone 2, Class I Division 2). Suitable for automation and control systems requiring reliable relays and terminal blocks in industrial settings.
Phoenix Contact 2909519 Relay Module Specifications:
- Dimensions: 14 mm wide, fits standard DIN rail (EN 60715), length varies with mounting, typical height 85 mm
- Input Voltage: 24 V DC
- Power Contact Rating: 10 A
- Switching Capacity: 1500 VA at 250 V AC, 2 A at 24 V DC
- Contact Type: 1 PDT (single changeover contact)
- Contact Voltage: 250 V AC/DC
- Minimum Switching Voltage: 12 V DC at 10 mA
- Mechanical Life: 3 x 10^6 cycles
- Test Voltage: 4 kV AC (relay winding/ contact)
- Degree of Protection: RT II (Relay housing)
- Standards: IEC 60664, UL V0 flammability rating
- Operating Temperature: -20°C to 60°C
- Storage/Transport Temperature: -40°C to 85°C
- Approvals: IECEx, ATEX Zone 2, UL Listed, cUL, KC, EAC
Buy the Buy Phoenix Contact PLC-RSC-24DC/21HC/EX Part Number 2909519 Online
Purchase the Phoenix Contact PLC-RSC relay module online today to ensure dependable switching performance in industrial automation. This DIN-rail-mountable relay features a 24 V DC coil, 10 A contact capacity, and changeover contact for versatile control. Certified for hazardous environments under ATEX and IECEx standards, it guarantees safety and compliance in Zone 2 areas. Easy to install and highly durable, this relay module is essential for robust control systems requiring reliable operation in demanding industrial conditions. Order now and streamline your automation setup.
Order your Phoenix Contact PLC-RSC-24DC/21HC/EX relay module today and enhance your automation system with reliable, hazardous environment-approved relays.
