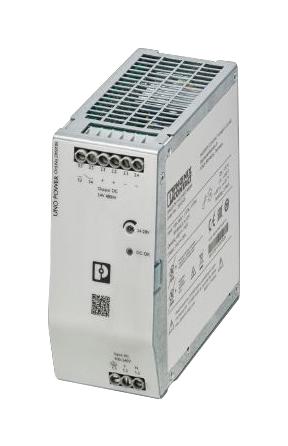

Phoenix Contact 2910105 Power Supply Unit
The UNO2-PS/1AC/24DC/480W power supply unit is designed for DIN rail mounting, providing a stable 24 V DC output with a power of 480 W. It features a narrow width of just 59 mm, making it ideal for space-saving control cabinets. It supports single-phase input from 100 to 240 V AC, operates efficiently with typical efficiencies of 93% at 120 V AC and 94.6% at 230 V AC. The device is suitable for outdoor use within a temperature range of -25°C to +70°C, with an IP20 degree of protection, and includes comprehensive surge and transient protections. It offers high reliability with an MTBF exceeding 900,000 hours at 25°C, ensuring long-term operational stability.
Phoenix Contact 2910105 Power Supply Unit Specifications:
- Input Voltage Range: 100 VAC to 240 VAC, -15% to +10%, 50-60 Hz
- Output Voltage: 24 V DC, adjustable to 28 V DC
- Output Current: 20 A, power 480 W
- Efficiency: Typical 93% at 120 VAC, 94.6% at 230 VAC
- Dimensions: Width 59 mm, Height 130 mm, Depth 125 mm
- Protection Class: IP20, Type 1
- Degree of Pollution: Class 2
- Ambient Temperature Range: -25°C to +70°C (derating above 55°C)
- MTBF: > 900,000 hours at 25°C
- Surge Protection: Varistor, gas-filled arrester
- Insulation Voltage: Input/Output 4 kV AC, Input/PE 3.5 kV AC
- Certifications: UL Listed, cUL Listed, IEC 61010-1 safety standards
- Power Dissipation: Less than 3 W at no load, Max losses around 37 W at full load
- Mounting: Horizontal DIN rail (EN 60715)
- Connection: Screw terminals, conductor cross-section min. 0.2 mm², max. 6 mm²
Buy the Buy Phoenix Contact UNO2-PS/1AC/24DC/480W Part Number 2910105 Online
Order the Phoenix Contact UNO2-PS/1AC/24DC/480W power supply online today. This reliable, high-efficiency power supply offers 480 W of power with a compact 59 mm width, suitable for DIN rail mounting and outdoor environments up to 70°C. It features robust surge and transient protections, proven long-term durability with an MTBF exceeding 900,000 hours, and certifications including UL and cUL. Ideal for industrial automation, control cabinet, and remote installation applications, ensuring energy-efficient operation and space optimization.
Get Phoenix Contact UNO2-PS/1AC/24DC/480W today—built for high efficiency, space-saving design, and outdoor applications.
Frequently Asked Questions
Where can I buy Phoenix Contact 2910105?
You can click on the BUY or RFQ button to purchase 2910105 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2910105?
You can download the 2910105 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2910105?
Phoenix Contact
