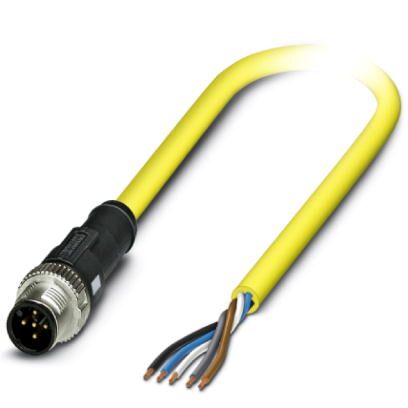

Phoenix Contact 1406158 5-Position Sensor Cable
The PHOENIX CONTACT SAC-5P-MS/ 5,0-542 SCO BK is a 5-position sensor/actuator cable designed for reliable connection in industrial automation applications. It incorporates a M12 SPEEDCON connector with A-coding, ensuring secure and standardized connectivity. The cable itself is constructed with a durable PVC jacket and features a twisted wire design for enhanced signal integrity. Its robust construction and environmental ratings (IP65, IP67, IP68) make it suitable for harsh industrial environments. Common applications include connecting sensors, actuators, and other devices in automated machinery, robotic systems, and process control equipment.
Phoenix Contact 1406158 5-Position Sensor Cable Specifications:
- Length of cable: 5 m
- Ambient temperature (operation) - Plug / socket: -25 °C ... 90 °C
- Degree of protection: IP65, IP67, IP68
- Rated current at 40°C: 4 A
- Rated voltage: 60 V
- Number of positions: 5
- Insulation resistance: ≥ 10 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Insertion/withdrawal cycles: ≥ 100
- Torque (M12 connector): 0.4 Nm
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Cable type: PVC yellow 105 °C
- Cable type (abbreviation): 542
- UL AWM style: 2517 (105°C/300 V)
- AWG signal line: 22
- Core diameter including insulation: 1.27 mm ±0.03 mm
- Wire colors: Brown, blue, black, white, gray
- Overall twist: 5 wires around filler to the core
- External sheath, color: yellow
- External cable diameter D: 5.4 mm ±0.2 mm
- Minimum bending radius, flexible installation: 8 x D
- Cable weight: 43 kg/km
- Outer sheath, material: PVC
- Material, filler: PP
- Material conductor insulation: PVC
- Conductor material: Tin-plated Cu litz wires
- Nominal voltage, cable: 300 V
- Special properties: UL standards PLTC and ITC
- Other resistance: UV resistant
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 240.0 g
- Custom tariff number: 85444290
- Country of origin: United States
