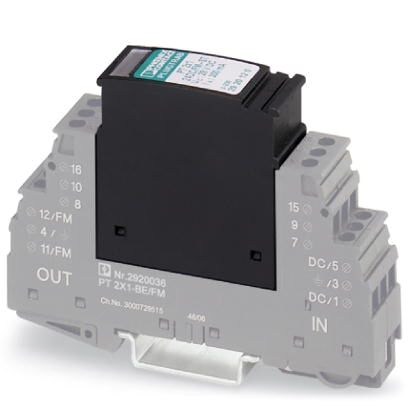

Phoenix Contact 2920120 Surge protection device
This surge protection plug features integrated diagnostics and a status indicator on the module. It includes a remote indication contact for two signal wires sharing a common reference potential. The device is rated for a nominal voltage of 24 V DC. Designed for easy maintenance, the plug allows checking with CHECKMASTER and provides consistent plug-in circuit protection. It has optical status indication for each arrester, supporting reliable operation. The device operates in ambient temperatures from -40°C to 85°C and is compliant with IEC 61643-21 standards, offering high reliability in industrial environments.
Phoenix Contact 2920120 Surge protection device Specifications:
- Nominal voltage: 24 V DC
- Maximum continuous voltage: 28 V DC
- Rated current: 300 mA at 45°C
- Ambient temperature: -40°C to 85°C
- Degree of protection: IP20
- Flammability rating: UL 94
- Connection method: Screw connection
- Conductor cross section flexible: 0.2 mm² to 2.5 mm²
- Conductor cross section AWG: 24 to 12
- Standards: IEC 61643-21
- UL Listed, EAC certification
- Dimensions and weight: Compact design, approximately 30.63 grams per piece
- Compatibility: For two signal wires with common reference potential, integrated spark gap
- Environmental conditions: Suitable for industrial environments, temperature range from -40°C to 85°C
- Additional features: Optical status indicator for arrester status, remote indication contact, high-resistance ground connection
Buy the Buy Phoenix Contact Surge Protection Plug Part Number 2920120 Online
Buy the Phoenix Contact surge protection device with part number 2920120 online today. Designed for industrial applications, it offers integrated diagnostics, remote indication, and high reliability. Easy to install via screw connection, it supports a wide temperature range from -40°C to 85°C. Its compact design and compliance with IEC 61643-21 make it an ideal choice for protecting sensitive signal wires. Ensure your systems are safeguarded efficiently by ordering this dependable surge protector now.
Order your Phoenix Contact Series2920120 surge protection plug today and ensure reliable signal circuit safeguarding with integrated diagnostics and remote indication.
Frequently Asked Questions
Where can I buy Phoenix Contact 2920120?
You can click on the BUY or RFQ button to purchase 2920120 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2920120?
You can download the 2920120 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2920120?
Phoenix Contact
