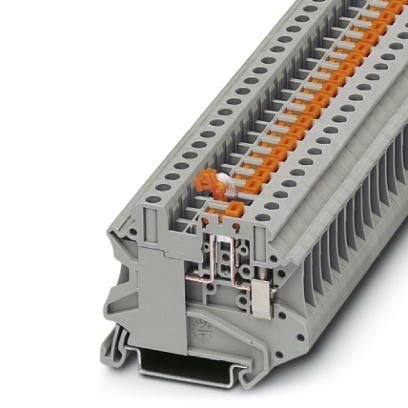

Phoenix Contact 3046141 disconnection terminal block
The Phoenix UT 4-MT-EX is a high-quality industrial disconnect terminal block suitable for process technology with Ex nA approval. It features a compact design, allowing for easy installation in tight spaces, and supports a nominal current of 20 A with a maximum voltage of 500 V. The terminal block is designed for screw connection terminals, accommodating conductor cross sections from 0.14 mm² to 6 mm² (AWG 26-10). Its double bridge shaft enables individual potential distribution, making it ideal for automation, control systems, and hazardous environments requiring reliable and safe connections.
Phoenix Contact 3046141 disconnection terminal block Specifications:
- Connection type: Screw connection
- Conductor cross section: 0.14 mm² – 6 mm² (AWG 26 – 10)
- Maximum conductor size AWG: 26 – 10
- Nominal current: 20 A
- Nominal voltage: 500 V
- Length: 57.8 mm
- Width: 6.2 mm
- Color: Gray
- Assembly: NS 35/7.5, NS 35/15
- Rated temperature index of insulation material: DIN EN 60216-1
- Standards: IEC 60947-7-1
- Environmental compliance: China RoHS
- Supports 2 conductors with same cross section, stranded, ferrules without plastic sleeve min. 0.14 mm², max. 1.5 mm², TWIN ferrules min. 0.5 mm², max. 2.5 mm²
- Designed for process technology applications and hazardous environments with Ex nA approval.
Buy the Phoenix 3046141 – Reliable Disconnect Terminal Block for Industrial Applications
Order the Phoenix UT 4-MT-EX terminal block online for secure, reliable connections in industrial automation, control systems, and hazardous environments. Its robust construction ensures long-lasting durability and efficient performance. With a compact design supporting 20 A and 500 V, it’s ideal for process automation, hazardous zone applications, and panel wiring. Easy to install with screw connection, it facilitates safe potential distribution thanks to its double bridge shaft. Purchase online to streamline your installation process with trusted industrial-grade components designed for demanding conditions.
Get Phoenix 3046141 today—built for precision, durability, and efficient automation system connections.
Frequently Asked Questions
Where can I buy Phoenix Contact 3046141?
You can click on the BUY or RFQ button to purchase 3046141 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3046141?
You can download the 3046141 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3046141?
Phoenix Contact
