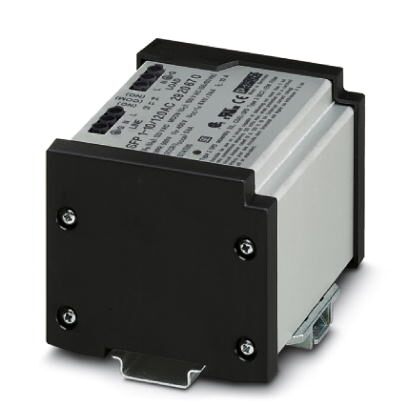

Phoenix Contact 2920670 1-10/120AC Surge Protection Device

Phoenix Contact 2920670 1-10/120AC Surge Protection Device Specifications:

• Packing unit: 1 pc
• Weight per Piece (excluding packing): 608.6 g
• Custom tariff number: 85363010
• Country of origin: Germany
• Height: 93 mm
• Width: 112 mm
• Depth: 79 mm
• Degree of protection: IP20
• Ambient temperature (operation): -25 °C ... 70 °C
• Ambient temperature (storage/transport): -25 °C ... 70 °C
• Permissible humidity (operation): 5 % ... 95 %
• Standards/specifications: IEC 61643-11 2011, EN 61643-11 2012
• IEC test classification: III
• EN type: T3
• Number of ports: Two
• SPD design: Voltage-limiting type
• Mode of protection: L-N, L-PE, N-PE
• Mounting type: DIN rail: 35 mm
• Color: black, silver
• Housing material: Aluminum
• Degree of pollution: 2
• Flammability rating according to UL 94: V-0
• Type: Rail-mountable module, one-piece
• Number of positions: 2
• Surge protection fault message: Optical, remote indicator contact
• For country-specific use in: USA, CN, BR
• Nominal voltage UN: 120 V AC (TN), 120 V AC (TT - only in use with RCD), 120 V AC (IT - only in use with RCD)
• Nominal frequency fN: 50 Hz (60 Hz)
• Maximum continuous voltage UC: 150 V AC
• Nominal current IN: 10 A (60°C)
• Rated load current IL: 10 A (60°C)
• Residual current IPE: ≤ 0.6 mA
• Nominal discharge current In(8/20) µs: 3 kA
• Standby power consumption PC: ≤ 7.5 VA (at UREF), ≤ 10 VA (at UC)
• Reference test voltage UREF: 132 V AC
• Combination wave UOC: 6 kV (3 kA)
• Voltage protection level Up: ≤ 0.5 kV
• TOV behavior at UT(L-N): 175 V AC (5 s / withstand mode), 240 V AC (5 s / safe failure mode), 208 V AC (120 min / safe failure mode)
• TOV behavior at UT(L-PE): 208 V AC (5 s / withstand mode), 175 V AC (120 min / withstand mode), 1332 V AC (200 ms / safe failure mode)
• TOV behavior at UT(N-PE): 1200 V AC (200 ms / safe failure mode)
• Response time tA: ≤ 25 ns
• Capacity (L-N): 1 µF ±10 %, 10 nF ±10 % (X2-275 V)
• Capacity (L-PE): 2.2 nF ±20 % (Y2-250 V)
• Capacity (L-PEN): 2.2 nF ±20 % (Y2-250 V)
• Max. required back-up fuse: 20 A (MCB B/general purpose), 16 A (IT - MCB B/general purpose)
• Input attenuation aE, sym.: 20 dB (≥ 100 kHz / 50 Ω)
• Input attenuation aE, asym.: 30 dB (≥ 1 MHz / 50 Ω)
• Short-circuit current rating ISCCR: 5 kA AC (TN/TT), 1 kA AC (IT)
• Operating voltage (Remote fault indicator contact): 12 V AC ... 250 V AC, 250 V DC (250 mA DC)
• Operating current (Remote fault indicator contact): 100 mA AC ... 1 A, 1 A (48 V DC)
• Connection method (Remote fault indicator contact): Pluggable screw connection
• Screw thread (Remote fault indicator contact): M2
• Tightening torque (Remote fault indicator contact): 0.25 Nm
• Stripping length (Remote fault indicator contact): 7 mm
• Conductor cross section AWG (Remote fault indicator contact): 26 ... 16
• Connection method (Connection data): Screw terminal blocks
• Conductor cross section AWG (Connection data): 14 ... 10
• Screw thread (Connection data): M3
• Tightening torque (Connection data): 0.5 Nm ... 0.6 Nm, 4.5 lbf-in. ... 5.5 lbf-in.
• Stripping length (Connection data): 8 mm
• Maximum continuous operating voltage MCOV (L-N): 150 V AC
• Maximum continuous operating voltage MCOV (L-G): 150 V AC
• Maximum continuous operating voltage MCOV (N-G): 150 V AC
• Nominal frequency: 50/60 Hz
• Voltage protection rating VPR (L-N): 500 V
• Voltage protection rating VPR (L-G): 500 V
• Voltage protection rating VPR (N-G): 500 V
• Discharge resistor: 820 kΩ
