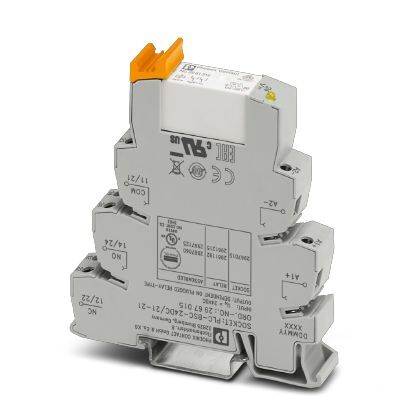

Phoenix Contact PLCRSC24DC2121AU 24V DC Power Relay Socket
The PHOENIX CONTACT PLC-RSC- 24DC/21-21AU is a versatile power relay socket designed for integration into industrial automation systems. It offers a slim profile for space-saving DIN rail mounting and utilizes a V8 adapter for efficient system cabling. The socket incorporates a multi-layer gold contact for reliable performance and features safe isolation according to DIN EN 50178 between the coil and contact. Functional plug-in bridges simplify wiring, and an integrated input circuit with interference suppression ensures stable operation. This relay socket is ideal for applications requiring reliable power control in a compact form factor, such as programmable logic controllers (PLCs) and automated machinery.
Phoenix Contact PLCRSC24DC2121AU 24V DC Power Relay Socket Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 76.0 g
- Custom tariff number: 85364190
- Country of origin: Germany
- Nominal input voltage UN: 24 V DC
- Typical input current at UN: 18 mA
- Typical response time: 8 ms
- Typical release time: 10 ms
- Protective circuit: Reverse polarity protection Polarity protection diode
- Power dissipation for nominal condition: 0.43 W
- Contact type: 2 PDT
- Contact material: AgNi, hard gold-plated
- Maximum switching voltage AC: 30 V
- Maximum switching voltage DC: 36 V
- Minimum switching voltage: 100 mV (at 10 mA)
- Min. switching current: 1 mA (at 24 V)
- Maximum inrush current: 50 mA
- Limiting continuous current: 50 mA
- Interrupting rating (ohmic load) max.: 1.2 W (at 24 V DC)
- Maximum switching voltage AC/DC (gold layer destroyed): 250 V
- Minimum switching voltage (gold layer destroyed): 5 V
- Limiting continuous current (gold layer destroyed): 6 A
- Maximum inrush current (gold layer destroyed): 15 A (300 ms)
- Min. switching current (gold layer destroyed): 10 mA
- Interrupting rating (ohmic load) max. (gold layer destroyed): 140 W (at 24 V DC)
- Switching capacity: 1500 VA (for 250 V AC)
- Test voltage relay winding/relay contact: 4 kV AC (50 Hz, 1 min.)
- Test voltage PDT/PDT: 2.5 kV AC (50 Hz, 1 min.)
- Operating mode: 100% operating factor
- Degree of protection: RT III (Relay)
- Mechanical service life: 3 x 10^7 cycles
- Flammability rating according to UL 94: V0
- Standards/regulations: IEC 60664, EN 50178, IEC 62103
- Rated surge voltage/insulation: 6 kV/Basic isolation
- Degree of pollution: 2
- Overvoltage category: III
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Width: 14 mm
- Height: 80 mm
- Depth: 94 mm
- Ambient temperature (operation): -40 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Stripping length (input/output): 8 mm
- Screw thread (input/output): M3
- Conductor cross section solid (input/output): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input/output): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input/output): 26 ... 14
